21033816410 - HARTING

Description: M12 D-code 4pin female straight panel feed through pcb mount, IP20

Download 21033816410 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

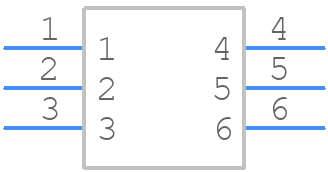

21033816410 - HARTING - PCB symbol
click to zoom
PCB Footprints

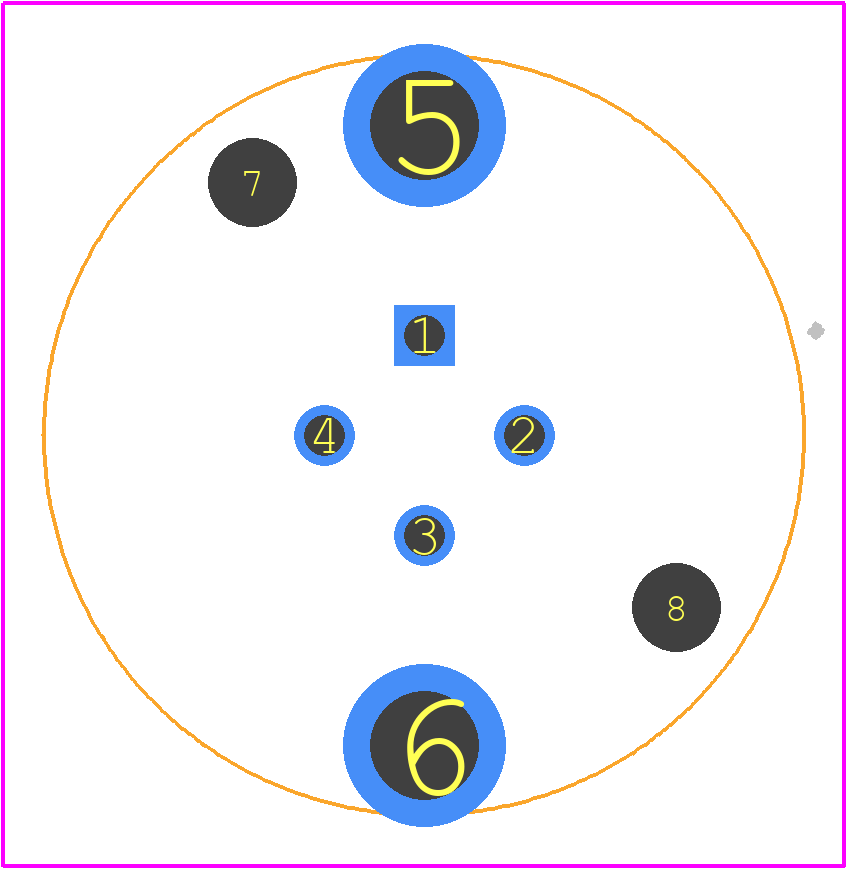

21033816410 - HARTING PCB footprint - Other - Other - 21033816410
click to zoom
3D Models
21033816410 - HARTING - 3D model - Other - 21033816410
click to zoom

21033816410 Details

  • Manufacturer Part Number:

    21033816410

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

21033816410 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 21033816410 connector is designed to withstand high-vibration environments, with a tested vibration resistance of up to 10g.
  • Yes, the connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidity levels up to 95% RH.
  • The connector is rated for a minimum of 500 mating cycles, making it suitable for applications that require frequent connections and disconnections.
  • The 21033816410 connector is compatible with other HARTING connectors that share the same interface and mating dimensions, but it's recommended to verify compatibility with specific connectors before use.
