2129261-1 - TE Connectivity

Description: Body Features: Shell Base Material Stainless Steel | Configuration Features: Number of Power Positions 0 | Number of Positions 40 | Number of Rows 3 | Number of Signal Positions 40 | PCB Mount Orientation Vertical | Contact Features: Contact Current Rating (Max) 1 AMP | Number of Utility Contacts 0 | Contact Mating Area Plating Material Gold | Contact Current Rating (Max) .5 AMP | Contact Base Material Copper Alloy | Contact Mating Area Plating Material Thickness .38 MICM | Housing Features: Centerline (Pit

Download 2129261-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

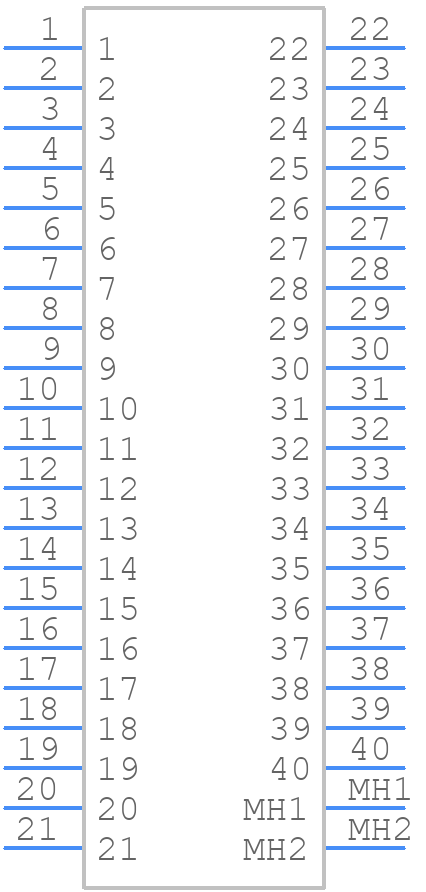

Symbol
2129261-1 - TE Connectivity - PCB symbol
click to zoom

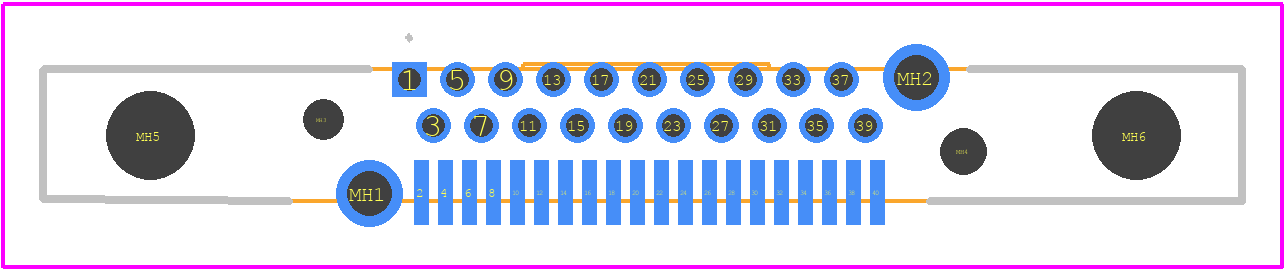

PCB Footprints
2129261-1 - TE Connectivity PCB footprint - Other - Other - 2129261-1-3
click to zoom
3D Models
2129261-1 - TE Connectivity - 3D model - Other - 2129261-1-3
click to zoom

2129261-1 Details

  • Manufacturer Part Number:

    2129261-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.77

  • Additional Feature:

    LOW PROFILE, SHIELDED

  • Body/Shell Style:

    PLUG

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Shell Material:

    STAINLESS STEEL

  • Terminal Length:

    0.067 inch

  • Terminal Pitch:

    0.6 mm

  • Termination Type:

    SOLDER AND SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

2129261-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 2129261-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 2129261-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 2129261-1 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to ensure proper sealing and protection to maintain the connector's integrity in humid or wet environments.
  • The recommended wire size for the 2129261-1 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires with a suitable insulation material and temperature rating to ensure reliable connections. Consult TE Connectivity's application notes or contact their support for specific guidance.
