2132403-5 - TE Connectivity

Description: Configuration Features: Number of Positions 200 | Number of Ports 10 | Port Matrix Configuration 2 x 5 | Contact Features: Tail Plating Material Tin | Contact Mating Area Plating Material Thickness .76 MICM | Contact Mating Area Plating Material Gold or Gold Flash over Palladium Nickel | Dimensions: PCB Thickness (Recommended) .059 INCH | PCB Thickness (Recommended) 1.5 MM | Electrical Characteristics: Data Rate (Max) 16 GBS | Housing Features: Centerline (Pitch) .032 INCH | Centerline (Pitch) .8 MM | Cage

Download 2132403-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2132403-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

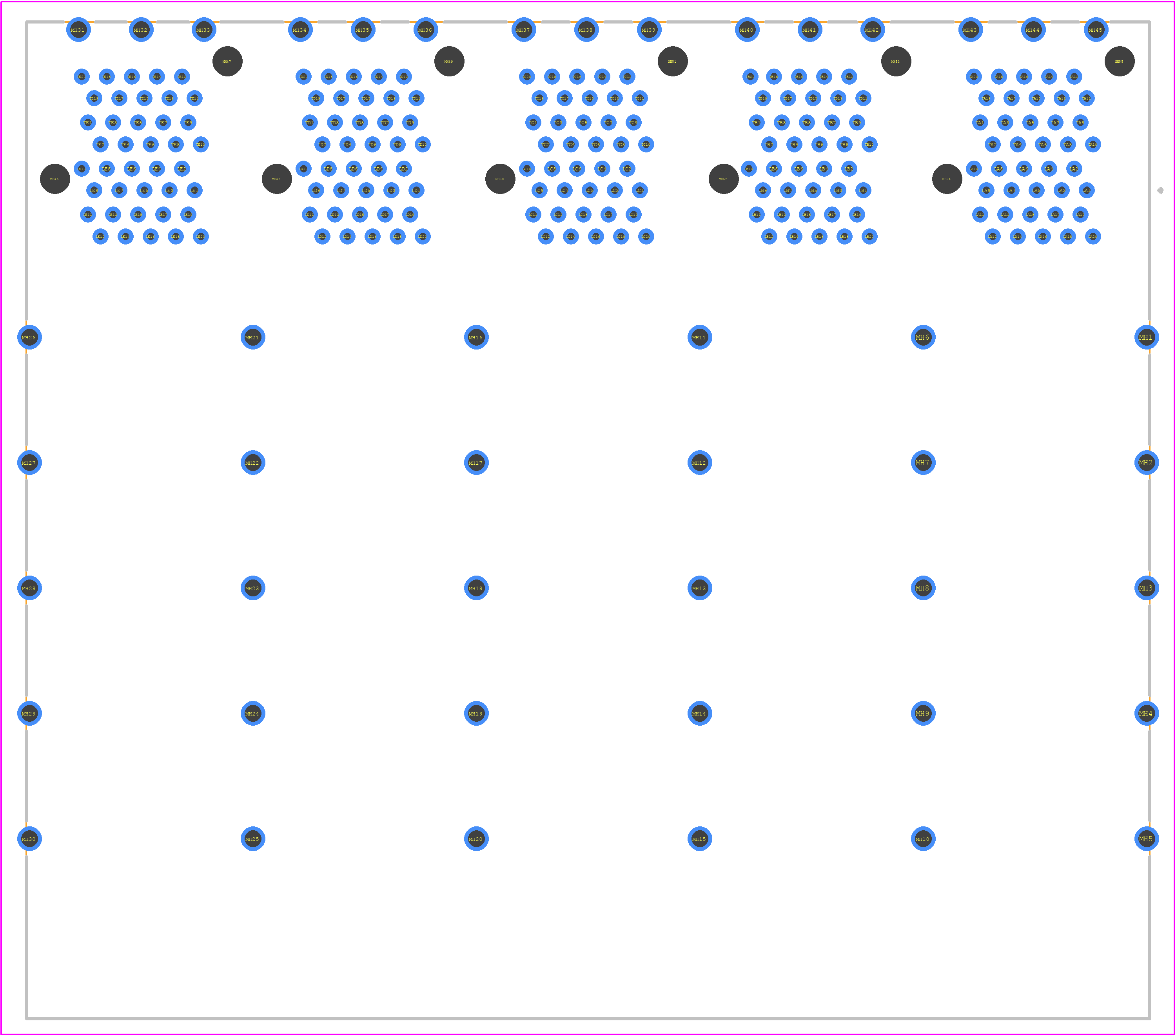

2132403-5 - TE Connectivity PCB footprint - Other - Other - 2132403-5-2
click to zoom
3D Models
2132403-5 - TE Connectivity - 3D model - Other - 2132403-5-2
click to zoom

2132403-5 Details

  • Manufacturer Part Number:

    2132403-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.69

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Reference Standard:

    UL

  • Terminal Length:

    0.118 inch

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    200

  • UL Flammability Code:

    94V-0

2132403-5 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2132403-5 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines. However, it's crucial to verify the wire size and termination method to ensure reliable connections.
  • The 2132403-5 connector is designed for use in industrial environments and can operate in temperatures ranging from -40°C to 105°C (-40°F to 221°F). However, it's essential to consider the specific environmental conditions and ensure the connector is properly sealed and protected to prevent moisture ingress or other environmental factors from affecting its performance.
  • Yes, to ensure reliable connections and prevent damage to the connector or PCB, it's essential to follow TE Connectivity's recommended PCB layout guidelines, including keeping the PCB traces and components away from the connector's mating area and ensuring proper clearance around the connector's mounting holes.
