2170231-2 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

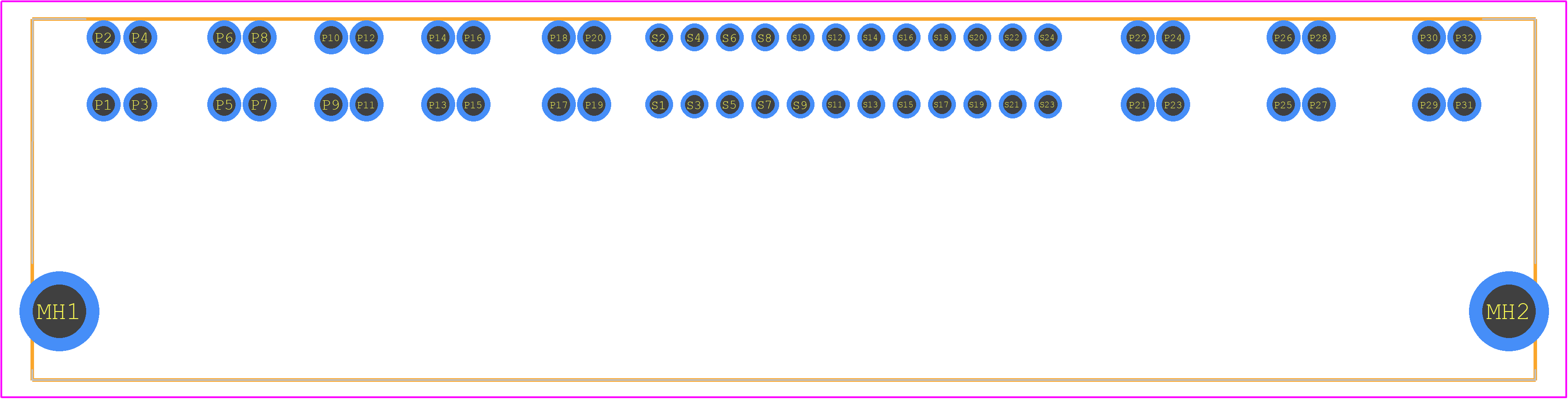

PCB Footprints

2170231-2 - TE Connectivity PCB footprint - Other - Other - 2170231-2-2

click to zoom

3D Models

2170231-2 - TE Connectivity - 3D model - Other - 2170231-2-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2170231-2
Part Number 2170231-2
Manufacturer TE Connectivity
Pin Count 58
Part Category Connector
Package Category Other
Footprint Name Other - 2170231-2-2
Released Date Feb 1, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

2170231-2 Details

Manufacturer Part Number:
2170231-2
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
TE Connectivity
YTEOL:
0
Additional Feature:
TERMINAL PITCH FOR POWER CONTACTS IS 2 MM
Connector Type:
CARD EDGE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
MIL Conformance:
NO
Mains Connector Rating:
15A
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Plating Thickness:
30u inch
Rated Current (Signal):
15 A
Rated Voltage:
300 V
Reference Standard:
UL
Terminal Length:
0.138 inch
Terminal Pitch:
6.84 mm
Termination Type:
PRESS FIT
UL Flammability Code:
94V-0

2170231-2 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals to ensure secure connections.
Yes, the 2170231-2 connector is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow TE Connectivity's guidelines for vibration testing and validation.
The operating temperature range for the 2170231-2 connector is -40°C to 125°C (-40°F to 257°F), but it's recommended to derate the connector's performance at extreme temperatures.
Yes, the 2170231-2 connector is designed to meet IP67 standards, making it suitable for outdoor or harsh environmental applications, but it's recommended to follow TE Connectivity's guidelines for environmental sealing and protection.
Yes, the 2170231-2 connector is designed to be compatible with other TE Connectivity products and some third-party components, but it's recommended to verify compatibility and follow TE Connectivity's guidelines for system integration.
