218-110 - Wago

Description: Conn Terminal Block 10 POS 2.5mm Solder RA Thru-Hole 4A Box

Download 218-110 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

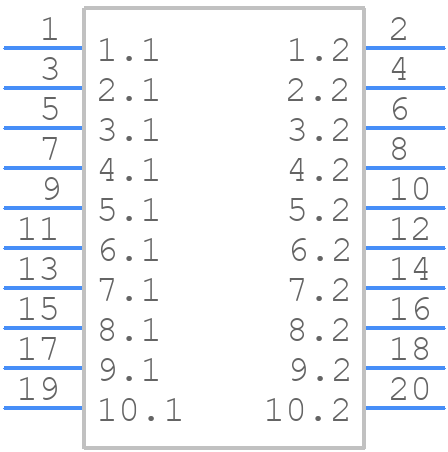

Symbol
218-110 - Wago - PCB symbol
click to zoom

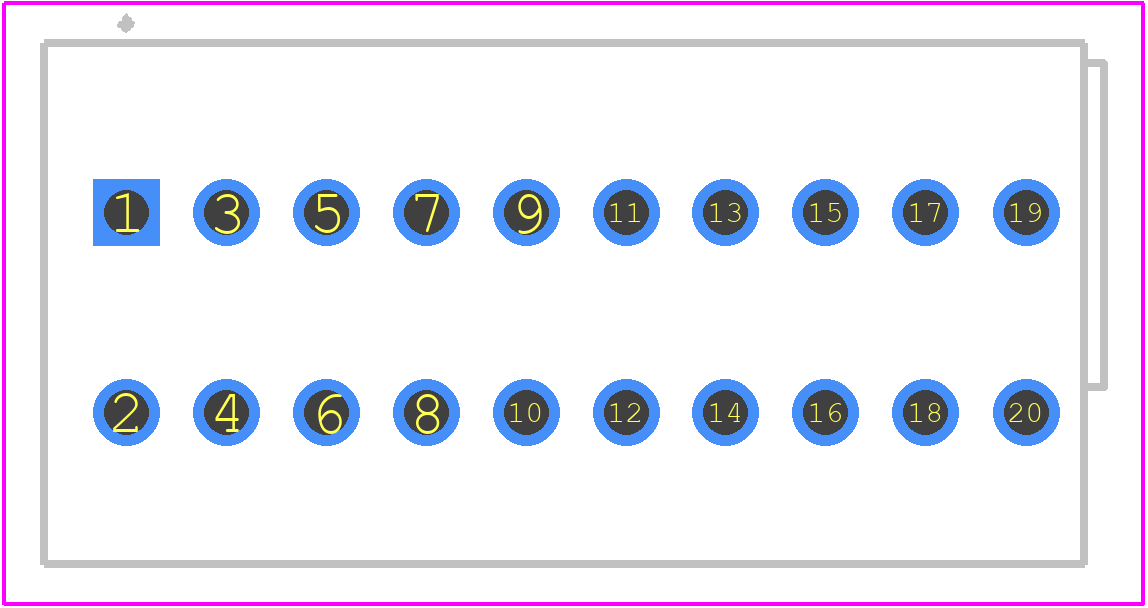

PCB Footprints
218-110 - Wago PCB footprint - Other - Other - 218-110-1
click to zoom
3D Models
218-110 - Wago - 3D model - Other - 218-110-1
click to zoom

218-110 Details

  • Manufacturer Part Number:

    218-110

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    SPRING CAGE

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    4 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    CCA;CSA;EN;IEC;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

218-110 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) according to WAGO's application notes.
  • Yes, the 218-110 connector is designed to withstand high vibrations and is suitable for use in applications with vibrations up to 10 g (according to IEC 60068-2-6).
  • Yes, the 218-110 connector is rated IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • Yes, the 218-110 connector is designed to accept stranded wire with a wire size range of 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).
  • Yes, the 218-110 connector is UL certified (UL 310) and meets the requirements for use in North American applications.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

218-110 Overview

Use the download button to access the 218-110 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 218-1, or try a keyword search, such as Terminals and Terminal Blocks
