The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to follow the manufacturer's guidelines to avoid damaging the connector or PCB.
Yes, the 218-510 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and screwing to prevent damage. Consult WAGO's application notes and guidelines for specific recommendations.
The 218-510 connector is rated for operating temperatures between -40°C and 125°C and can withstand humidities up to 95%. However, it's essential to consider the specific environmental conditions of your application and consult WAGO's documentation for any necessary derating or special considerations.
While the connector is optimized for AWG 20-24 wires, it can accommodate other wire sizes with some limitations. Consult WAGO's documentation for specific guidance on wire size compatibility and any necessary adjustments to the connector's configuration.
To ensure reliable connections, follow WAGO's recommended installation procedures, including proper wire stripping, insertion, and screwing. Use the correct tools and materials, and avoid over-tightening or under-tightening the screws.
Trust Checks
This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
218-510 Overview

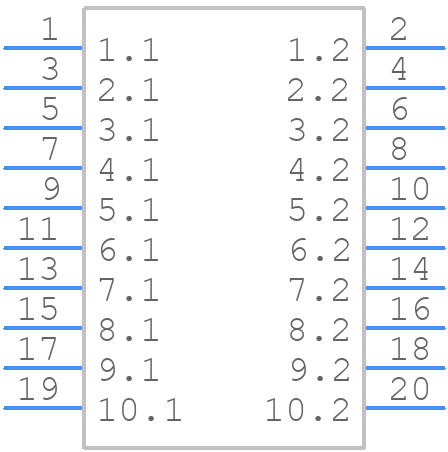

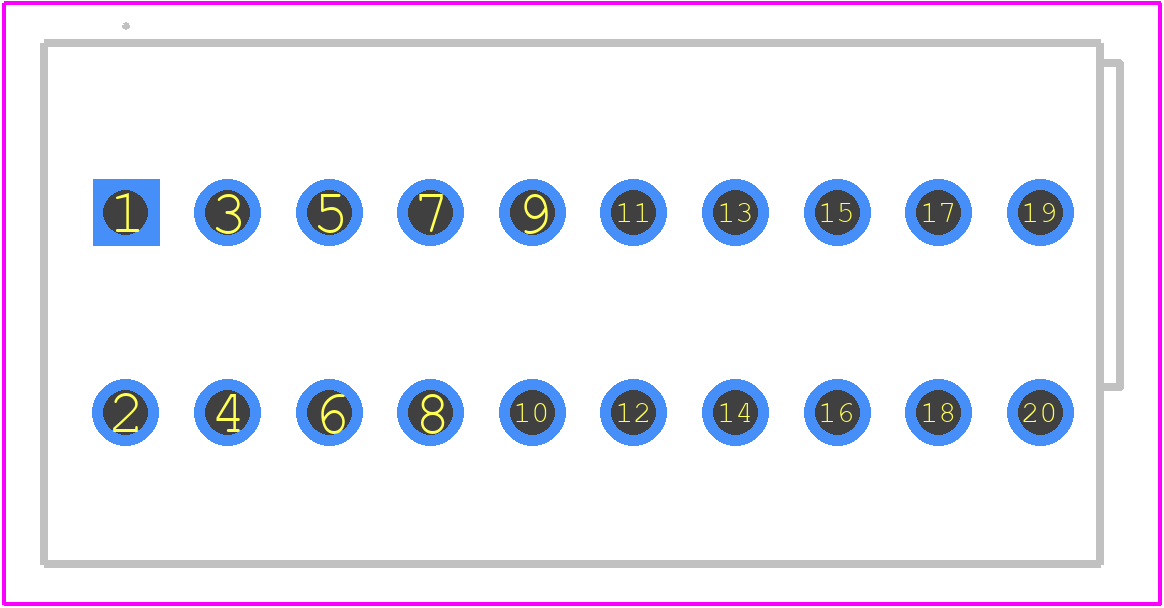

Use the download button to access the 218-510 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 218-5,
or try a keyword search, such as Terminals and Terminal Blocks
