A good PCB layout for the 2180AL08-U involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground layer is recommended.
To minimize noise and distortion, use a low-noise power supply, keep the analog signal paths short, and avoid mixing analog and digital signals on the same PCB. Also, use a high-quality, low-ESR capacitor for decoupling and consider adding a ferrite bead or common-mode choke to the power supply lines.
The 2180AL08-U is rated for operation from -40°C to +85°C. However, it's recommended to derate the device's performance and power dissipation at higher temperatures to ensure reliable operation.
Yes, the 2180AL08-U can be used in a differential audio circuit. In fact, it's designed to work with differential input signals. Make sure to follow the recommended pinout and layout guidelines to ensure optimal performance.
To troubleshoot oscillation or instability issues, check the PCB layout for any signs of resonance or antenna effects, ensure proper decoupling and power supply filtering, and verify that the input and output impedances are matched correctly. Also, check for any signs of overheating or excessive power dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2180AL08-U Overview

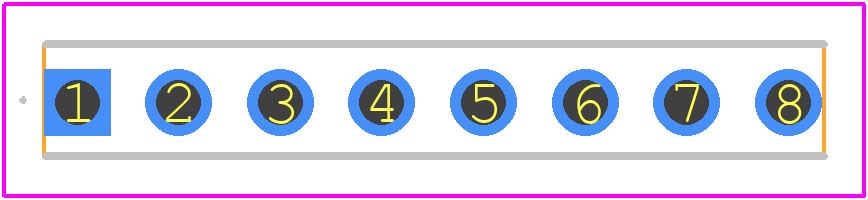

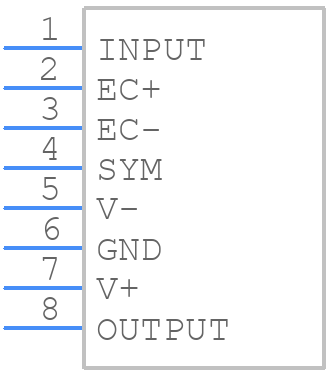

Use the download button to access the 2180AL08-U schematic symbol, PCB footprint, and 3D model.
