2180BL08-U - THAT CORPORATION

Description: Audio Amplifiers Pre-Trimmed VCA SIP-8

Download 2180BL08-U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

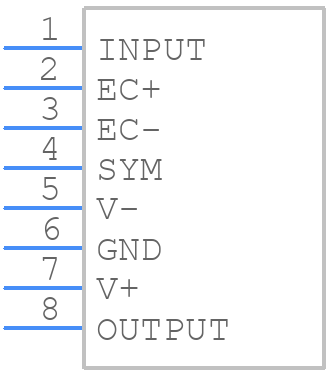

2180BL08-U - THAT CORPORATION - PCB symbol
click to zoom
PCB Footprints
2180BL08-U - THAT CORPORATION PCB footprint - Other - Other - 2180BL08-U-1
click to zoom
3D Models
2180BL08-U - THAT CORPORATION - 3D model - Other - 2180BL08-U-1
click to zoom

2180BL08-U Details

  • Manufacturer Part Number:

    2180BL08-U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    THAT Corporation

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.012 µA

  • JESD-30 Code:

    R-PSIP-T8

  • JESD-609 Code:

    e4

  • Length:

    19.5 mm

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    7.2 mm

  • Slew Rate-Nom:

    12 V/us

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Unity Gain BW-Nom:

    20000

  • Width:

    2.8 mm
