2181BS08-U footprint, schematic symbol and 3D model by THAT CORPORATION

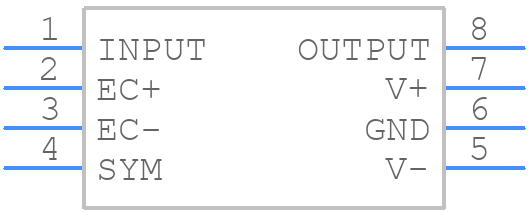

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2181BS08-U
Part Number 2181BS08-U
Manufacturer THAT CORPORATION
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 1240S08-U-1
Released Date Mar 24, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

2181BS08-U Details

Manufacturer Part Number:
2181BS08-U
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
Package Description:
ROHS COMPLIANT, PLASTIC, SOP-8
HTS Code:
8542.39.00.60
Manufacturer:
THAT Corporation
Consumer IC Type:
CONSUMER CIRCUIT
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
4.89 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Seated Height-Max:
1.73 mm
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
4 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
3.9 mm

2181BS08-U Frequently Asked Questions (FAQs)

The recommended PCB layout for the 2181BS08-U involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground layer is also recommended.
To ensure proper biasing, the 2181BS08-U requires a stable voltage supply, and the input and output pins should be biased to the recommended voltage levels. A voltage regulator and decoupling capacitors can help maintain a stable voltage supply.
The maximum power dissipation of the 2181BS08-U is 500mW. It's essential to ensure that the device is operated within this limit to prevent overheating and damage.
The 2181BS08-U is rated for operation up to 85°C. While it can tolerate high temperatures, it's essential to ensure proper heat sinking and thermal management to prevent overheating and damage.
Common issues with the 2181BS08-U include oscillation, distortion, and noise. To troubleshoot these issues, check the PCB layout, ensure proper biasing, and verify that the input and output signals are within the recommended specifications.

Trust Checks

Community Provided

System Verified

Community Approved

2181BS08-U Overview

Use the download button to access the 2181BS08-U schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 2181B, or try a keyword search, such as Other Consumer ICs
