Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure proper assembly and to minimize thermal resistance.
The 2200LL-820-H-RC has a high power rating, and proper thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout to minimize thermal resistance. You can also consider using thermal interface materials to improve heat transfer.
While the datasheet specifies an operating temperature range of -40°C to 150°C, it's essential to note that the device's performance and reliability may degrade above 125°C. It's recommended to operate the device within a temperature range of -40°C to 125°C for optimal performance.
The 2200LL-820-H-RC is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, you may need to take additional measures, such as using a vibration-dampening material or a more secure mounting method, to ensure the device's reliability.
While the 2200LL-820-H-RC meets various safety and regulatory standards, such as UL and IEC, it's essential to review the specific requirements of your application and ensure the device meets those standards. You may need to perform additional testing or certification to meet your application's specific requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2200LL-820-H-RC Overview

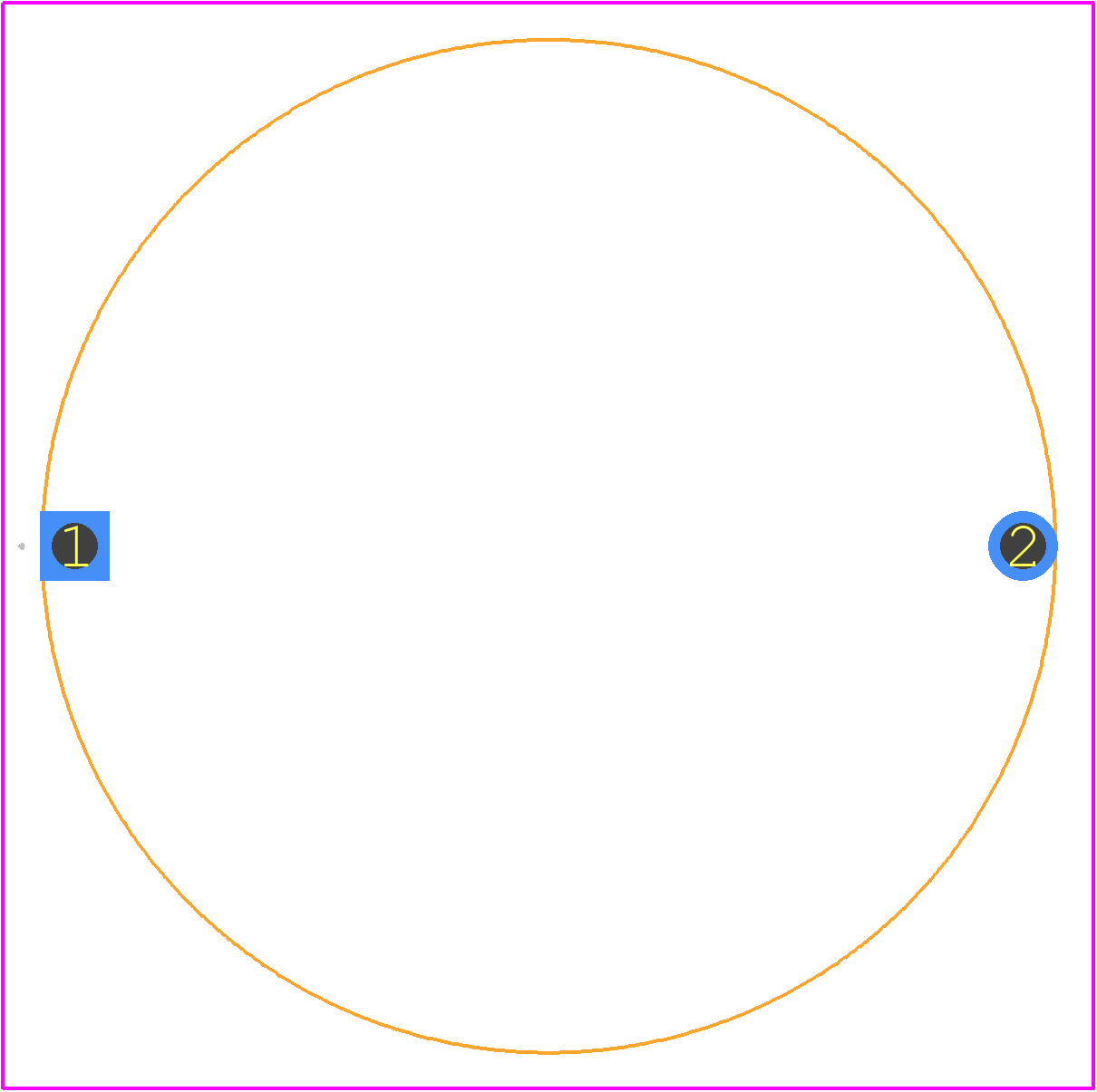

Use the download button to access the 2200LL-820-H-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2200L,
or try a keyword search, such as Fixed Inductors
