2204420-1 - TE Connectivity

Description: Rectangular Power Connectors, Header, Receptacle, Board-to-Board, 34 Position, 5 mm / 2 mm [.196 in / .078 in] Centerline, MULTI-BEAM HD

Download 2204420-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2204420-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

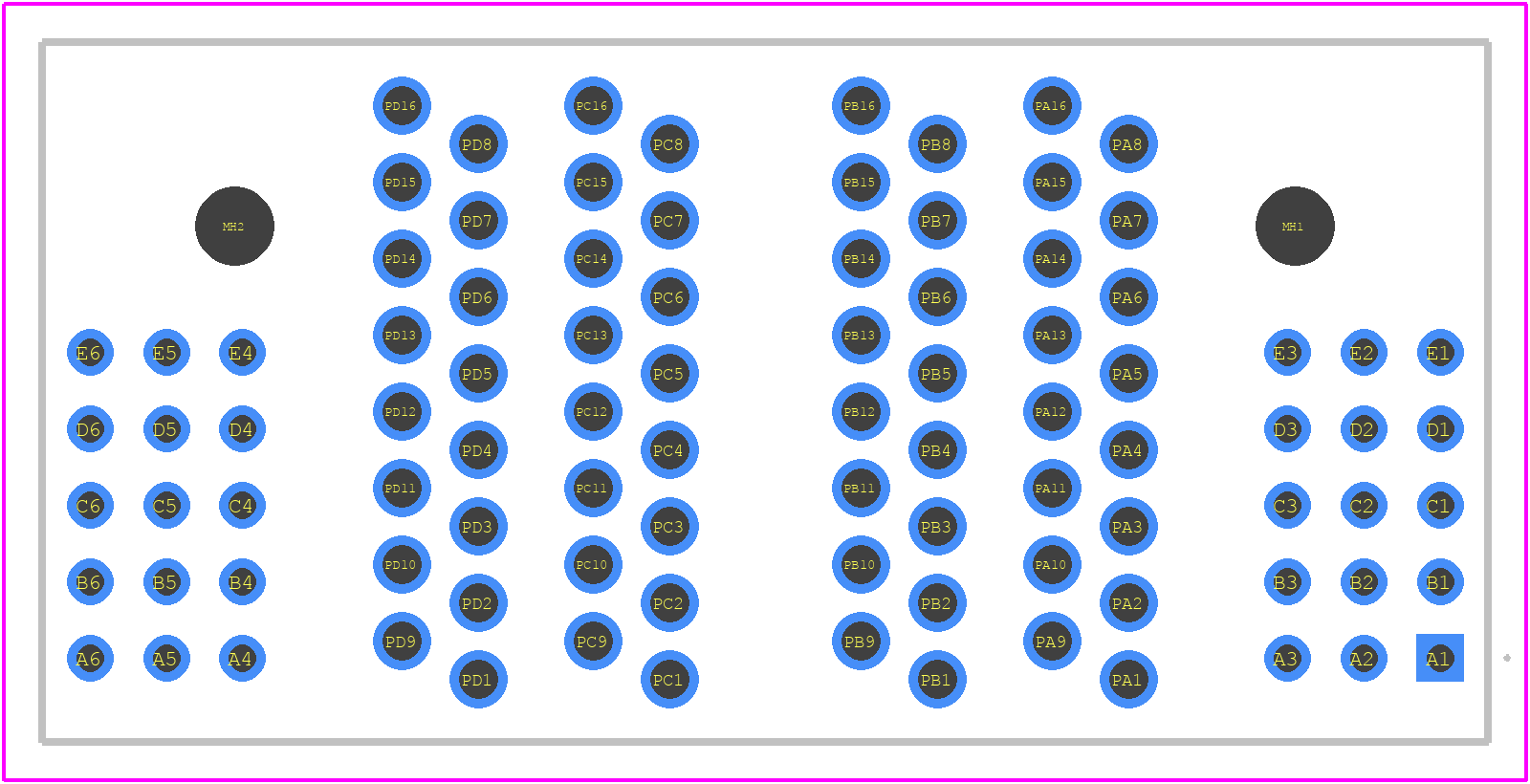

2204420-1 - TE Connectivity PCB footprint - Other - Other - 2204420-1-4
click to zoom
3D Models
2204420-1 - TE Connectivity - 3D model - Other - 2204420-1-4
click to zoom

2204420-1 Details

  • Manufacturer Part Number:

    2204420-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S30P4

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    372A

  • Mating Contact Row Spacing:

    0.079 inch

  • Mixed Contacts:

    YES

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    3u inch

  • Rated Current (Signal):

    372 A

  • Rated Voltage:

    60 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.126 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    34

  • UL Flammability Code:

    94V-0

2204420-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2204420-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The 2204420-1 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its performance and reliability.
  • The 2204420-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the 2204420-1 connector is designed for use with 20-18 AWG wire, it's possible to use it with other wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure that the connector can accommodate the desired wire size and meet the required performance and safety standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2204420-1 Overview

Use the download button to access the 2204420-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22044, or try a keyword search, such as Power Connectors
