2204529-2 - TE Connectivity

Description: Rectangular Power Connectors, Connector Assembly, Receptacle, Wire-to-Board, 3 Position, 5.7 mm [.224 in] Centerline, ELCON Mini

Download 2204529-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2204529-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

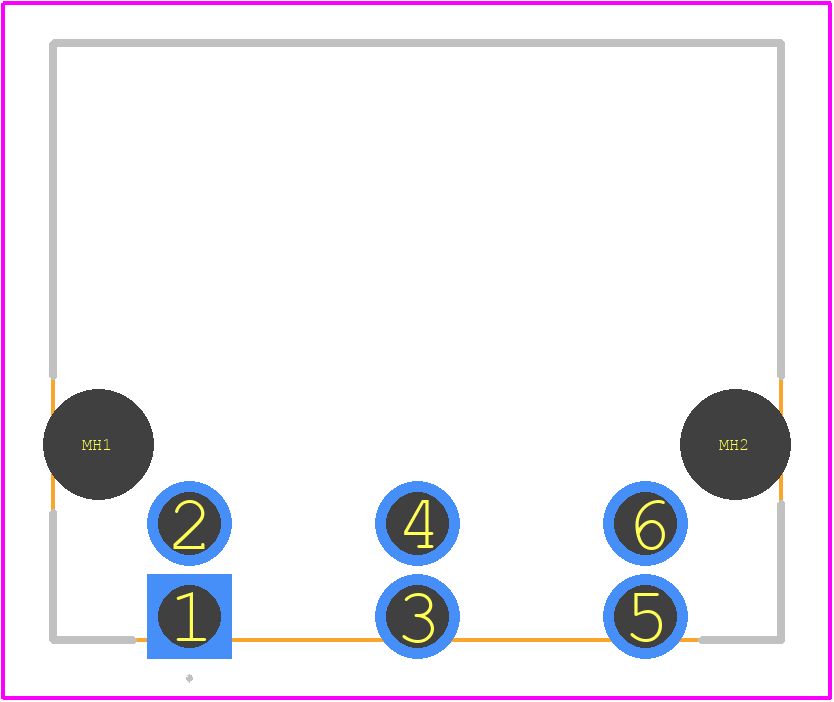

2204529-2 - TE Connectivity PCB footprint - Other - Other - 2204529-2-2
click to zoom
3D Models
2204529-2 - TE Connectivity - 3D model - Other - 2204529-2-2
click to zoom

2204529-2 Details

  • Manufacturer Part Number:

    2204529-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    11 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    35A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    118.11u inch

  • Rated Current (Signal):

    35 A

  • Rated Voltage:

    400 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    5.7 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

  • UL Flammability Code:

    94V-0

2204529-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2204529-2 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure and functional.
  • While the datasheet specifies 24 AWG wire, the connector can accommodate wire sizes between 20 AWG and 26 AWG. However, it's crucial to verify the wire size and insulation diameter to ensure proper fit and connection reliability.
  • The 2204529-2 connector is designed to operate in a temperature range of -40°C to 125°C and can withstand humidity up to 95%. However, it's essential to consider the specific environmental conditions of your application and consult with TE Connectivity or a qualified engineer to ensure the connector's suitability.
  • Yes, it's essential to follow proper PCB layout guidelines to ensure reliable connections and prevent damage to the connector. Key considerations include keeping the PCB traces away from the connector's mounting holes, using a sufficient solder mask, and ensuring proper clearance around the connector's body.
