2208165-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Connector & Keying Code A | Configuration Features: Number of Positions 20 | Number of Rows 2 | Number of Sections 1 | Number of Signal Positions 20 | PCB Mount Orientation Horizontal | Contact Features: Contact Size .5mm | Mating Tab Width .5 MM | Mating Tab Thickness .015 INCH | Mating Tab Thickness .4 MM | Contact Mating Area Plating Material Tin | Contact Type Tab | Mating Tab Width .019 INCH | Dimensions: Profile Height from PCB .354 INCH | Connector Length

Download 2208165-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

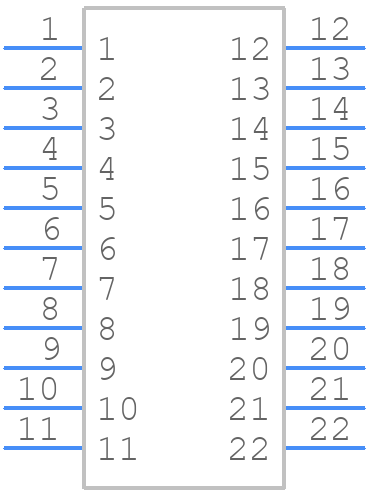

Symbol
2208165-1 - TE Connectivity - PCB symbol
click to zoom

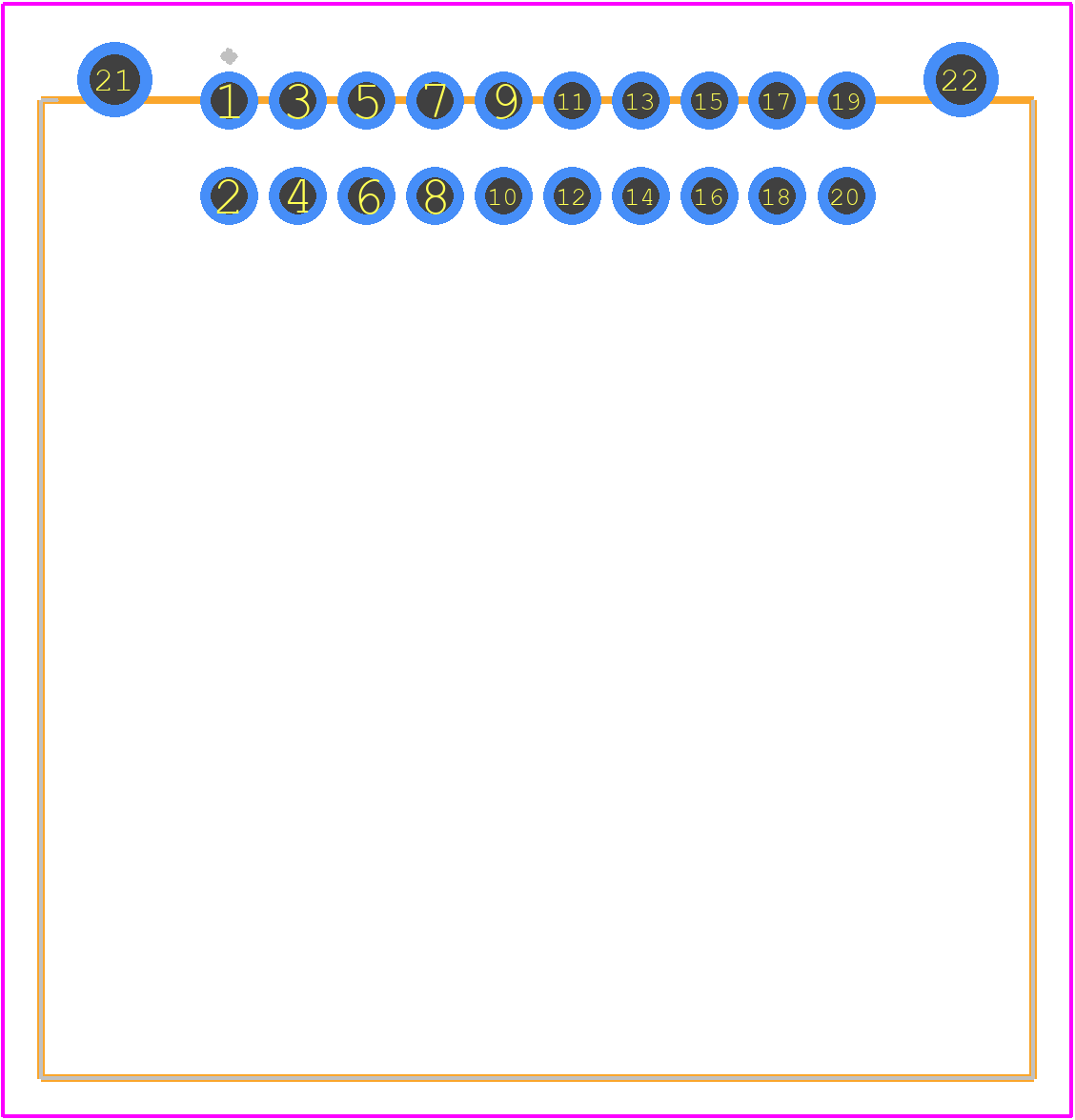

PCB Footprints
2208165-1 - TE Connectivity PCB footprint - Other - Other - 2208165-1
click to zoom
3D Models
2208165-1 - TE Connectivity - 3D model - Other - 2208165-1
click to zoom

2208165-1 Details

  • Manufacturer Part Number:

    2208165-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    4 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.911 inch

  • Body Length:

    1.02 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.8 mm

  • Termination Type:

    SOLDER

  • UL Flammability Code:

    94V-0

2208165-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals to ensure secure connections.
  • Yes, the 2208165-1 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and validation.
  • The operating temperature range for the 2208165-1 connector is -40°C to 125°C (-40°F to 257°F), but it's essential to consider the specific application and environmental conditions.
  • Yes, the 2208165-1 connector is designed to meet IP67 standards, making it suitable for outdoor or harsh environmental applications, but additional sealing or protection may be required depending on the specific use case.
  • Yes, the 2208165-1 connector is designed to be compatible with other TE Connectivity products and some third-party components, but it's essential to verify compatibility and follow proper mating and assembly procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2208165-1 Overview

Use the download button to access the 2208165-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22081, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
