2212S-14SG-85 - Multicomp Pro

Description: PCB Receptacle, Board-to-Board, 2.54 mm, 1 Rows, 14 Contacts, Through Hole Mount, 2212S

Download 2212S-14SG-85 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2212S-14SG-85 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

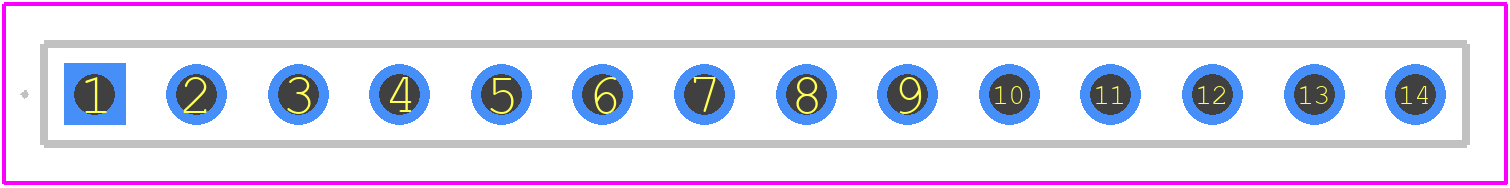

2212S-14SG-85 - Multicomp Pro PCB footprint - Other - Other - 2212S-14SG-85
click to zoom
3D Models
2212S-14SG-85 - Multicomp Pro - 3D model - Other - 2212S-14SG-85
click to zoom

2212S-14SG-85 Details

  • Manufacturer Part Number:

    2212S-14SG-85

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    9.1

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    SILVER

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

2212S-14SG-85 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 2212S-14SG-85 is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
  • Yes, the 2212S-14SG-85 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The operating temperature range for the 2212S-14SG-85 is -40°C to +125°C, making it suitable for a wide range of applications.
  • Yes, the 2212S-14SG-85 is designed to withstand high-vibration environments, making it suitable for applications such as automotive, aerospace, and industrial control systems.
  • The recommended storage condition for the 2212S-14SG-85 is in a dry, cool place, away from direct sunlight, with a temperature range of 10°C to 30°C and humidity below 60%.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2212S-14SG-85 Overview

Use the download button to access the 2212S-14SG-85 schematic symbol, PCB footprint, and 3D model.
