2213752-5 - TE Connectivity

Description: Configuration Features: PCB Mount Orientation Vertical | Number of Power Positions 6 | Number of Positions 6 | Number of Rows 1 | Contact Features: Contact Mating Area Plating Material Thickness 1.18 MICM | Contact Current Rating (Max) 12 AMP | PCB Contact Termination Area Plating Material Pre-Tin | Contact Mating Area Plating Material Tin | Contact Type Pin | Electrical Characteristics: Operating Voltage 600 VAC | Housing Features: Housing Material LCP GF30 (Liquid Crystal Polymer) | Centerline (Pitch) .25

Download 2213752-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2213752-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

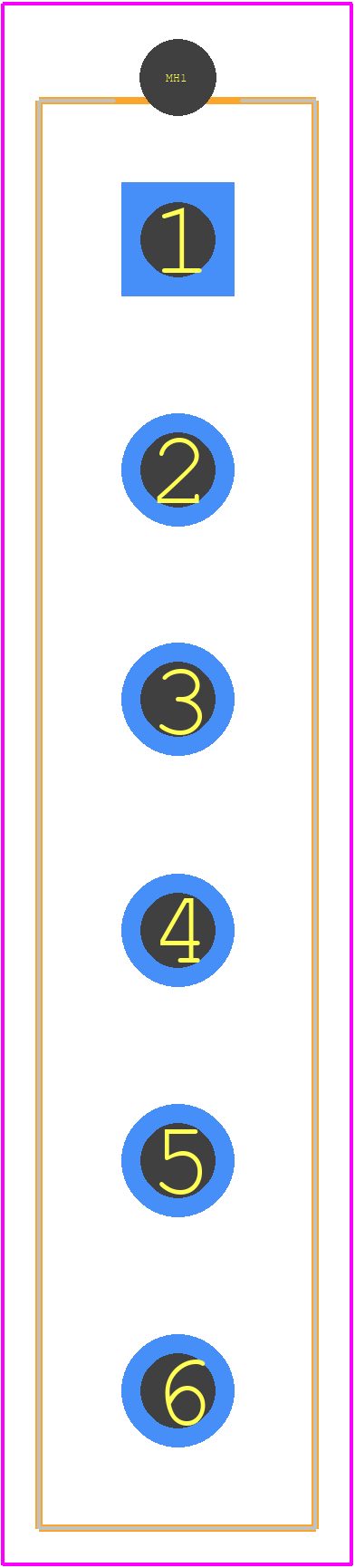

2213752-5 - TE Connectivity PCB footprint - Other - Other - 2213752-5-1
click to zoom
3D Models
2213752-5 - TE Connectivity - 3D model - Other - 2213752-5-1
click to zoom

2213752-5 Details

  • Manufacturer Part Number:

    2213752-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.3

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    WHITE

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    12A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    12 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    6.35 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

2213752-5 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2213752-5 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to ensure that the connector is properly secured and that the screw terminals are tightened to the recommended torque value to maintain reliable connections.
  • The 2213752-5 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not fully sealed against moisture or water. If you need to use the connector in outdoor or harsh environments, you may need to add additional protection, such as a waterproof coating or enclosure.
  • While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to ensure that the wire size you choose is compatible with the connector's terminal design and that the wire is properly seated and secured to prevent damage or electrical issues.
  • Yes, as with any electrical connector, it's essential to follow proper safety precautions when using the 2213752-5 connector. Ensure that the connector is used within its rated voltage and current specifications, and follow proper wiring and termination procedures to prevent electrical shock or fire hazards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2213752-5 Overview

Use the download button to access the 2213752-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22137, or try a keyword search, such as Power Connectors
