Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 2214BR-20G
- Part Number 2214BR-20G
- Manufacturer Multicomp Pro
- Pin Count 20
- Part Category Connector
- Package Category Other

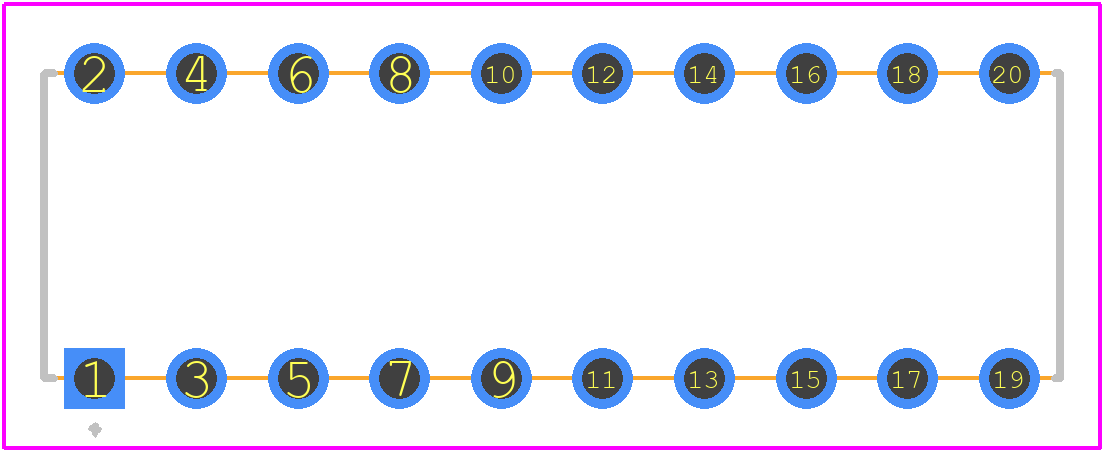

- Footprint Name Other - 2214BR-20G-1
- Released Date Mar 8, 2024
- Last Modified Date Jun 25, 2024 8:06 AM UTC
- Pinout / Pin List Click Here (Member Only)
2214BR-20G Details
-
Manufacturer Part Number:
2214BR-20G
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
SPC Multicomp
-
YTEOL:
9.1
-
Body/Shell Style:
SOCKET
-
Connector Type:
BOARD CONNECTOR
-
Contact Finish Mating:
GOLD
-
Contact Finish Termination:
Gold (Au)
2214BR-20G Frequently Asked Questions (FAQs)
-
The operating temperature range of the 2214BR-20G is -40°C to +125°C.
-
Yes, the 2214BR-20G is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
-
The recommended storage conditions for the 2214BR-20G are in a dry, cool place, away from direct sunlight, with a temperature range of 5°C to 30°C and humidity below 60%.
-
Yes, the 2214BR-20G is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial control systems, automotive systems, and more.
-
The typical lead time for delivery of the 2214BR-20G varies depending on the supplier and the quantity ordered, but it is usually around 2-4 weeks.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
2214BR-20G Overview
Use the download button to access the 2214BR-20G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 2214B,
or try a keyword search, such as Headers and Edge Type Connectors
