2214S-20SG-85 - Multicomp Pro

Description: MULTICOMP - 2214S-20SG-85 - SOCKET, PCB, 2 ROW, VERT, 20WAY

Download 2214S-20SG-85 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2214S-20SG-85 - Multicomp Pro - PCB symbol
click to zoom

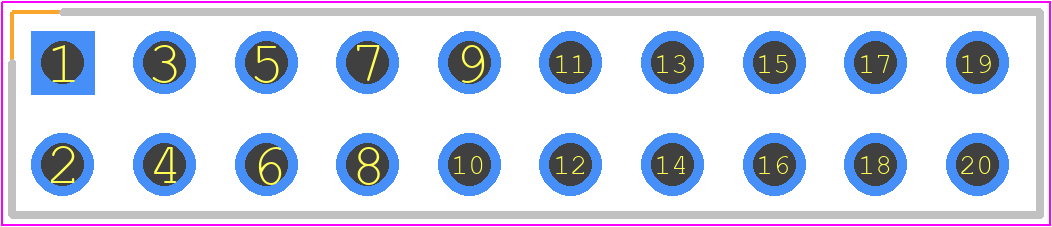

PCB Footprints
2214S-20SG-85 - Multicomp Pro PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - 2214S-20SG-85-AA
click to zoom
3D Models
2214S-20SG-85 - Multicomp Pro - 3D model - Header, Receptacle - Straight PTH Box - 2214S-20SG-85-AA
click to zoom

2214S-20SG-85 Details

  • Manufacturer Part Number:

    2214S-20SG-85

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    9.1

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

2214S-20SG-85 Frequently Asked Questions (FAQs)

  • The recommended storage condition for the 2214S-20SG-85 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C (-4°F to 104°F) and humidity below 80%.
  • Yes, the 2214S-20SG-85 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of hazardous substances in electrical and electronic equipment.
  • The operating temperature range for the 2214S-20SG-85 is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 2214S-20SG-85 is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial control systems, automotive systems, and aerospace systems.
  • Yes, the 2214S-20SG-85 is compatible with lead-free soldering processes, making it suitable for use in modern electronic manufacturing processes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2214S-20SG-85 Overview

Use the download button to access the 2214S-20SG-85 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2214S, or try a keyword search, such as Headers and Edge Type Connectors
