Bel Fuse recommends a PCB layout with a minimum of 1.5mm clearance around the component, and a land pattern with a 1.1mm x 1.1mm pad size for the pins. A thermal pad with a 2.5mm x 2.5mm size is also recommended for heat dissipation.
The 2250013-4 is rated for operation up to 125°C, but it's recommended to derate the current rating by 1.5% per degree Celsius above 80°C to ensure reliable operation. Consult the datasheet for specific derating curves.
Bel Fuse recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a ramp rate of 3°C/second. Consult the datasheet for specific soldering guidelines.
Yes, the 2250013-4 is sensitive to moisture and humidity. It's recommended to store the components in a dry, cool place, and to handle them with anti-static wrist straps or mats to prevent ESD damage.
The 2250013-4 is designed to withstand moderate vibration and shock, but it's recommended to consult with Bel Fuse's application engineers to determine the suitability of the component for specific environmental conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2250013-4 Overview

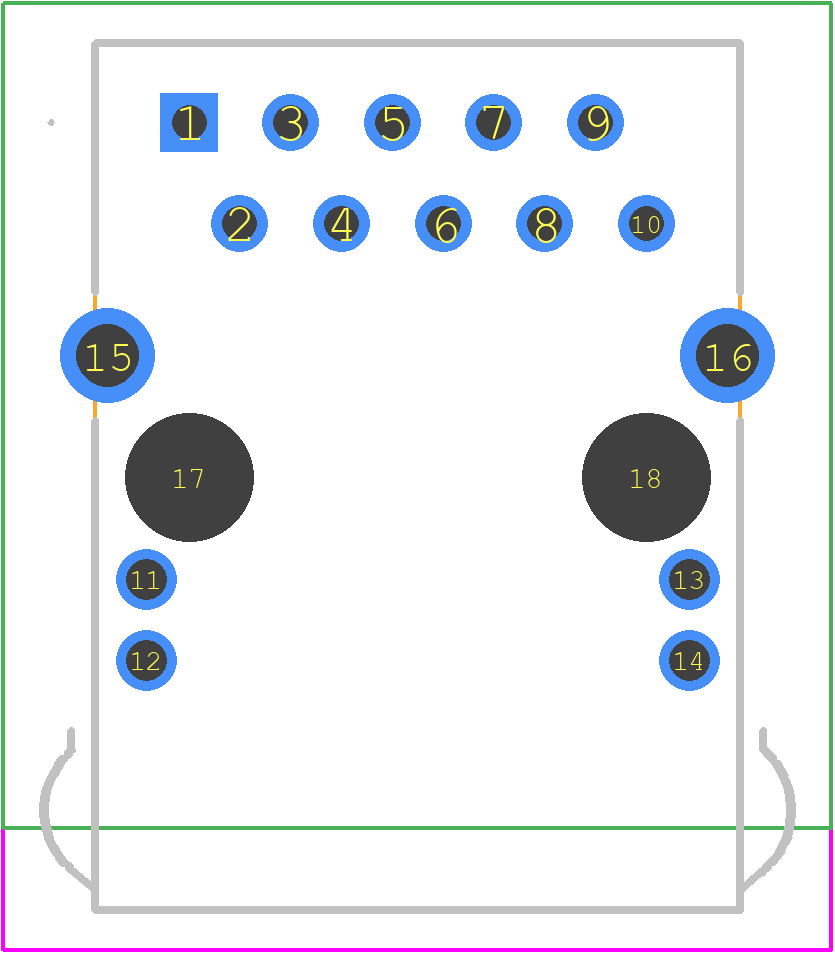

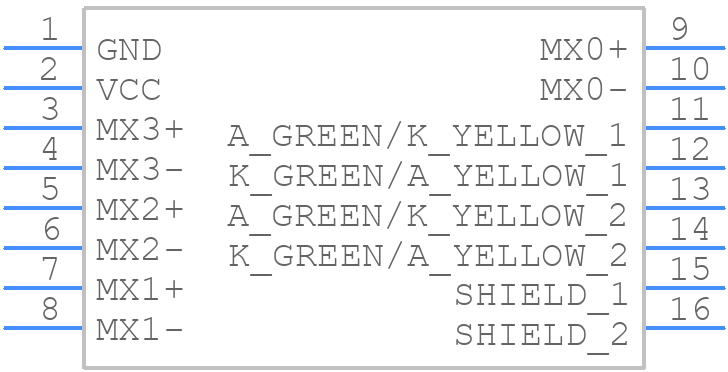

Use the download button to access the 2250013-4 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 22500,
or try a keyword search, such as Telecom and Datacom Connectors
