Description:Configuration Features: PCB Mount Orientation Vertical | Number of Positions 1 | Contact Features: Contact Mating Area Plating Material Tin (Sn) | Contact Underplating Material Thickness 39.37 – 118.11 MICIN | PCB Contact Termination Area Plating Material Tin | Contact Mating Area Plating Material Finish Matte | Contact Underplating Material Copper | Contact Mating Area Plating Material Thickness 2 – 6 MICM | Contact Mating Area Plating Material Thickness 78.74 – 236.22 MICIN | Contact Type Pin | Cont
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals, as specified in the TE Connectivity application notes.
Yes, the 225678-E connector is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
While the datasheet specifies AWG 20-24, the connector can accommodate wire sizes from AWG 18 to AWG 26, but the wire stripping length and insulation diameter may need to be adjusted accordingly.
The 225678-E connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
The connector is designed to meet IP67 and IP69K ratings, making it suitable for use in harsh environments, including those with high humidity and exposure to chemicals. However, it's essential to follow proper sealing and installation procedures to ensure the connector's integrity.
Trust Checks
No trust score is available for this model.
Trust Score Unavailable
Sponsored
225678-E Overview

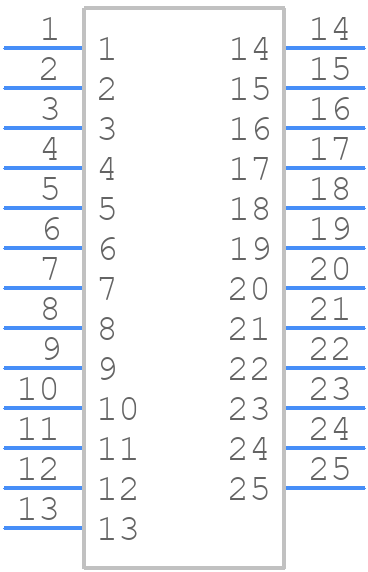

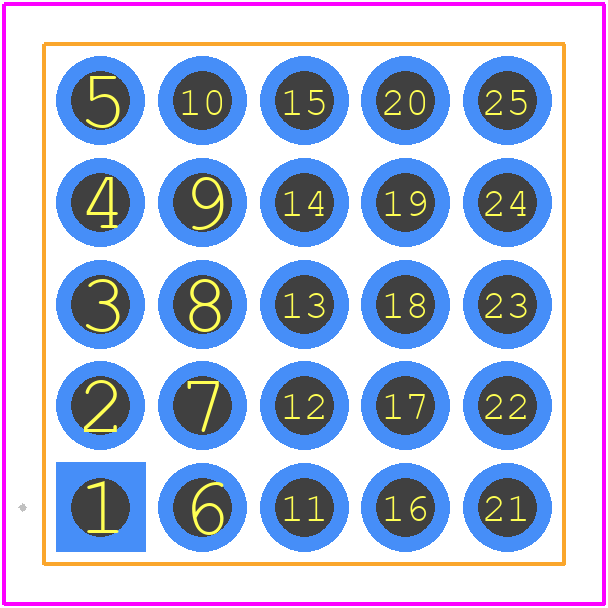

Use the download button to access the 225678-E 3D model. You can still request or build the schematic symbol and PCB footprint by using the respective build or request forms on this page.
To find more CAD model downloads similar to this part, try a partial part number search, like 22567,
or try a keyword search, such as Headers and Edge Type Connectors
