225684-E - TE Connectivity

Description: PCB Mount Receptacle, Vertical, Cable-to-Board, 1 Position, Tin (Sn), Through Hole - Press-Fit, Power, Package, ERNI PowerElements

Download 225684-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
225684-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

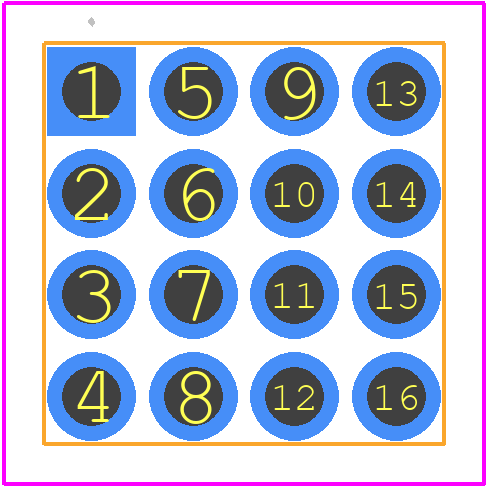

225684-E - TE Connectivity PCB footprint - Other - Other - 225684-E-3
click to zoom
3D Models
225684-E - TE Connectivity - 3D model - Other - 225684-E-3
click to zoom

225684-E Details

  • Manufacturer Part Number:

    225684-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    160A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    135 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    236.22u inch

  • Rated Current (Signal):

    160 A

  • Terminal Length:

    0.138 inch

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    1

225684-E Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 225684-E connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • Yes, the 225684-E connector has a IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The operating temperature range for the 225684-E connector is -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with the use of adapters or specialized tooling. However, it's recommended to consult with TE Connectivity or a qualified engineer to ensure compatibility.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

225684-E Overview

Use the download button to access the 225684-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22568, or try a keyword search, such as Headers and Edge Type Connectors
