225685-E - TE Connectivity

Description: PCB Mount Receptacle, Vertical, Cable-to-Board, 1 Position, Tin (Sn), Through Hole - Press-Fit, Power, Package, ERNI PowerElements

Download 225685-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

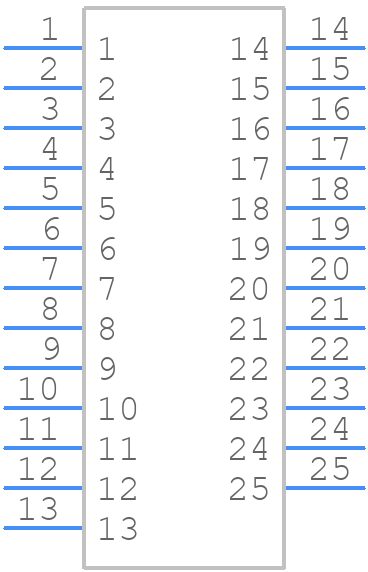

225685-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

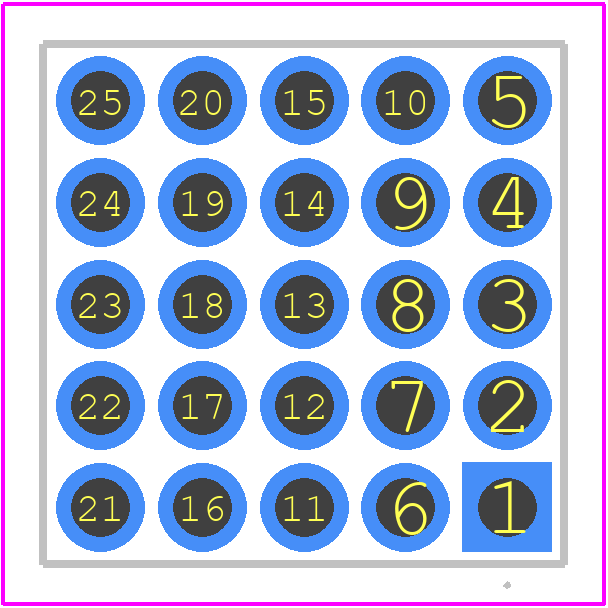

225685-E - TE Connectivity PCB footprint - Other - Other - 225685-E-2
click to zoom
3D Models
225685-E - TE Connectivity - 3D model - Other - 225685-E-2
click to zoom

225685-E Details

  • Manufacturer Part Number:

    225685-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    22 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Mounting Type:

    BOARD

  • Number of Ways:

    1

  • Rated Current:

    250 A

  • Safety Approval:

    UL

  • Terminal Gender:

    FEMALE

  • Terminal and Terminal Block Type:

    POWER TERMINAL

225685-E Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 225685-E connector is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments, such as in industrial or transportation applications.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate wire sizes ranging from AWG 18 to AWG 26. However, it's essential to verify the wire size and insulation diameter to ensure proper fit and connection reliability.
  • The 225685-E connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
  • The 225685-E connector is designed to meet the requirements of IEC 60512-2-1 and IEC 60512-2-2 for connector performance in harsh environments. It can withstand exposure to humidity, salt spray, and other corrosive substances, but it's essential to follow proper installation and sealing procedures to ensure reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

225685-E Overview

Use the download button to access the 225685-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22568, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
