227161-7 - TE Connectivity

Description: BNC Connector, Jack, 50 ohm, Bayonet, 4 GHz, Cable-to-Board / Cable-to-Panel, 1 Position, Printed Circuit Board, Panel Mount, BNC

Download 227161-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
227161-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

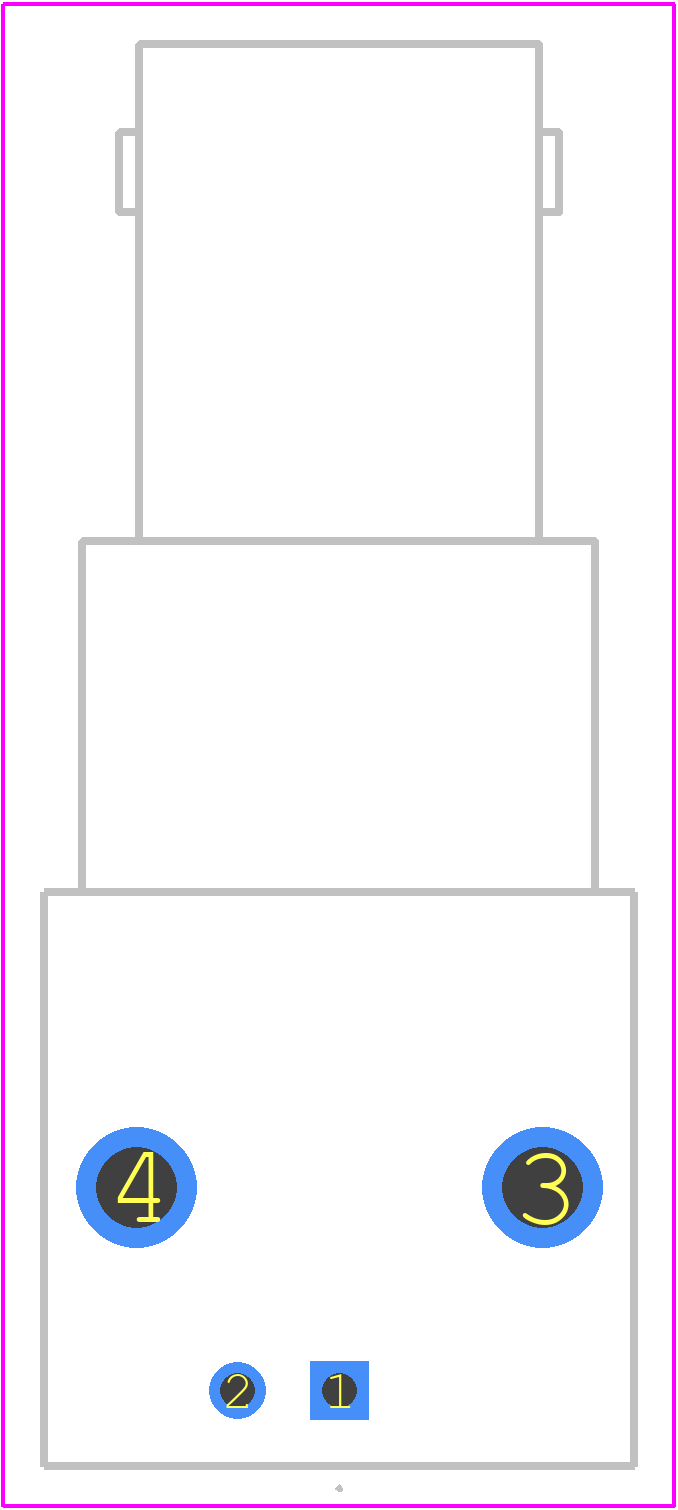

227161-7 - TE Connectivity PCB footprint - Other - Other - 227161-7-2
click to zoom
3D Models
227161-7 - TE Connectivity - 3D model - Other - 227161-7-2
click to zoom

227161-7 Details

  • Manufacturer Part Number:

    227161-7

  • Brand Name:

    AMP

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    AMP

  • Body Breadth:

    0.625 inch

  • Body Depth:

    0.519 inch

  • Body Length:

    0.581 inch

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    COAX

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Durability:

    500 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    15.568 N

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    WHITE

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Frequency-Max:

    4 GHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    YES

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Terminal Length:

    0.162 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    1

  • Withdrawl Force-Min:

    .278 N

227161-7 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 227161-7 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet recommends AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with some adjustments. However, using larger wire sizes may not be possible due to the terminal design. Consult with TE Connectivity or a qualified engineer for specific guidance.
  • The 227161-7 connector is designed for general-purpose applications and may not be suitable for extreme environments. However, TE Connectivity offers variants with enhanced environmental protection, such as the 227161-7-01, which features a higher temperature rating and improved moisture resistance. Consult the datasheet or contact TE Connectivity for specific guidance.
  • Yes, to ensure reliable connections and prevent damage, it's essential to follow proper PCB layout guidelines, such as maintaining a minimum clearance of 1.5 mm between the connector and other components, and using a solder mask to prevent solder bridging. Consult the datasheet or TE Connectivity's application notes for detailed guidance.
