227LBB250M2BC - ILLINOIS CAPACITOR

Description: Aluminum Electrolytic Capacitors - Snap In 220uF 250V 20%

Download 227LBB250M2BC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
227LBB250M2BC - ILLINOIS CAPACITOR - PCB symbol
click to zoom
PCB Footprints

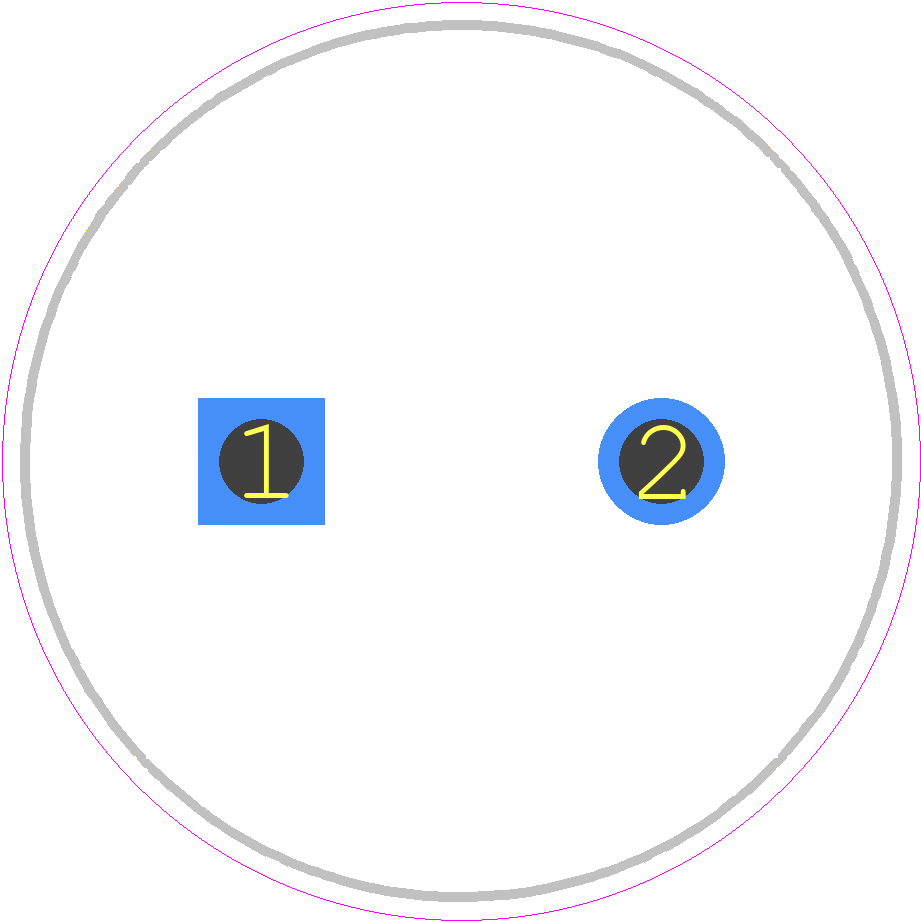

227LBB250M2BC - ILLINOIS CAPACITOR PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22mm x 25mm
click to zoom
3D Models
227LBB250M2BC - ILLINOIS CAPACITOR - 3D model - Capacitor, Polarized Radial Diameter - 22mm x 25mm
click to zoom

227LBB250M2BC Details

  • Manufacturer Part Number:

    227LBB250M2BC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Illinois Capacitor Inc

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    753.57 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    3 mA

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    1310 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.1

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    SNAP-IN

227LBB250M2BC Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. It's essential to follow these guidelines to prevent damage to the capacitor.
  • Yes, the 227LBB250M2BC is designed to withstand vibrations up to 20 G's, making it suitable for use in high-vibration applications. However, it's essential to ensure proper mounting and securement to prevent mechanical stress.
  • The 227LBB250M2BC capacitor is designed to have a long lifespan, with a typical capacitance drift of ±10% over 1,000 hours at 125°C. However, it's essential to follow the recommended storage and operating conditions to ensure optimal performance.
  • Yes, the 227LBB250M2BC capacitor is designed to operate in humid environments, with a moisture sensitivity level (MSL) of 1. However, it's essential to follow the recommended storage and operating conditions to prevent moisture-related issues.
  • The 227LBB250M2BC capacitor is rated for operation up to 125°C, but it's essential to derate the voltage and current according to the temperature derating curve provided in the datasheet to ensure reliable operation.
