228-1277-39-0602J - 3M

Description: IC & Component Sockets RECPT FOR DIP SOCKET 28 Contact Qty.

Download 228-1277-39-0602J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

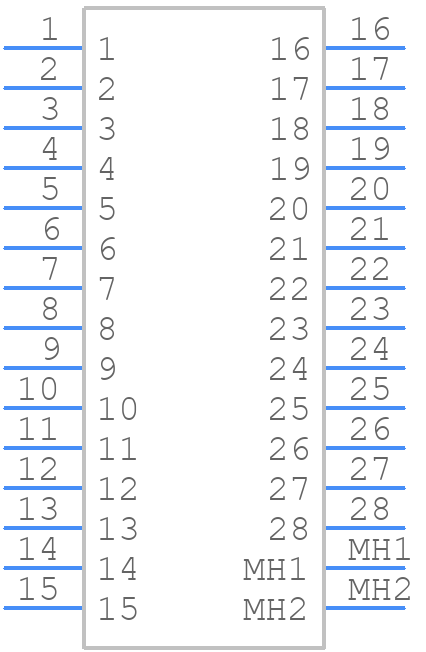

228-1277-39-0602J - 3M - PCB symbol
click to zoom
PCB Footprints

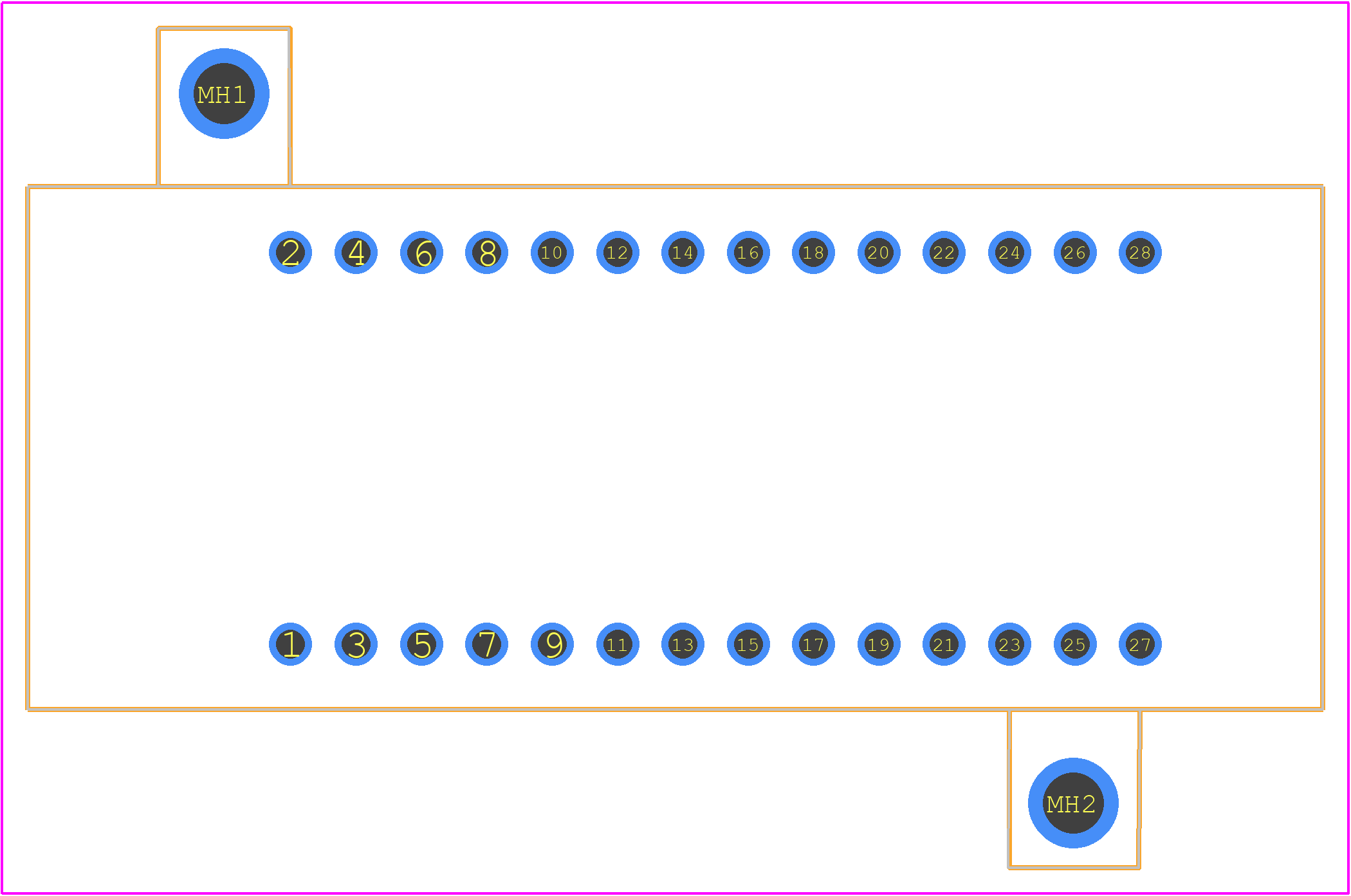

228-1277-39-0602J - 3M PCB footprint - Other - Other - 228-1277-39-0602J-2
click to zoom
3D Models
228-1277-39-0602J - 3M - 3D model - Other - 228-1277-39-0602J-2
click to zoom

228-1277-39-0602J Details

  • Manufacturer Part Number:

    228-1277-39-0602J

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD (30) OVER NICKEL (50)

  • Contact Material:

    BERYLLIUM COPPER

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP28

  • Housing Material:

    GLASS FILLED POLYSULFONE

  • JESD-609 Code:

    e4

  • Number of Contacts:

    28

228-1277-39-0602J Frequently Asked Questions (FAQs)

  • The operating temperature range of the 228-1277-39-0602J connector is -55°C to 125°C.
  • Yes, the 228-1277-39-0602J connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial equipment.
  • The 228-1277-39-0602J connector has a mating cycle life of 500 cycles minimum, ensuring reliable connections even in applications with frequent mating and unmating.
  • Yes, the 228-1277-39-0602J connector is designed to be resistant to moisture, chemicals, and other environmental factors, making it suitable for use in harsh environments.
  • The recommended torque value for the 228-1277-39-0602J connector is 0.5 to 1.5 N·m (4 to 12 in·lb).
