229A56 - Hammond Manufacturing

Description: Power Transformer 1750Vrms 6VA 8 Terminal PC Pin Thru-Hole

Download 229A56 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

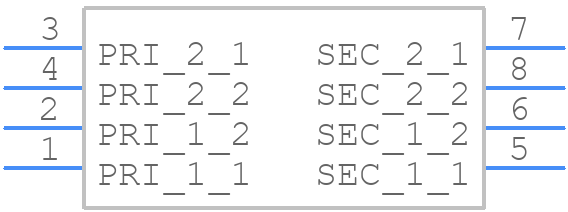

229A56 - Hammond Manufacturing - PCB symbol
click to zoom
PCB Footprints

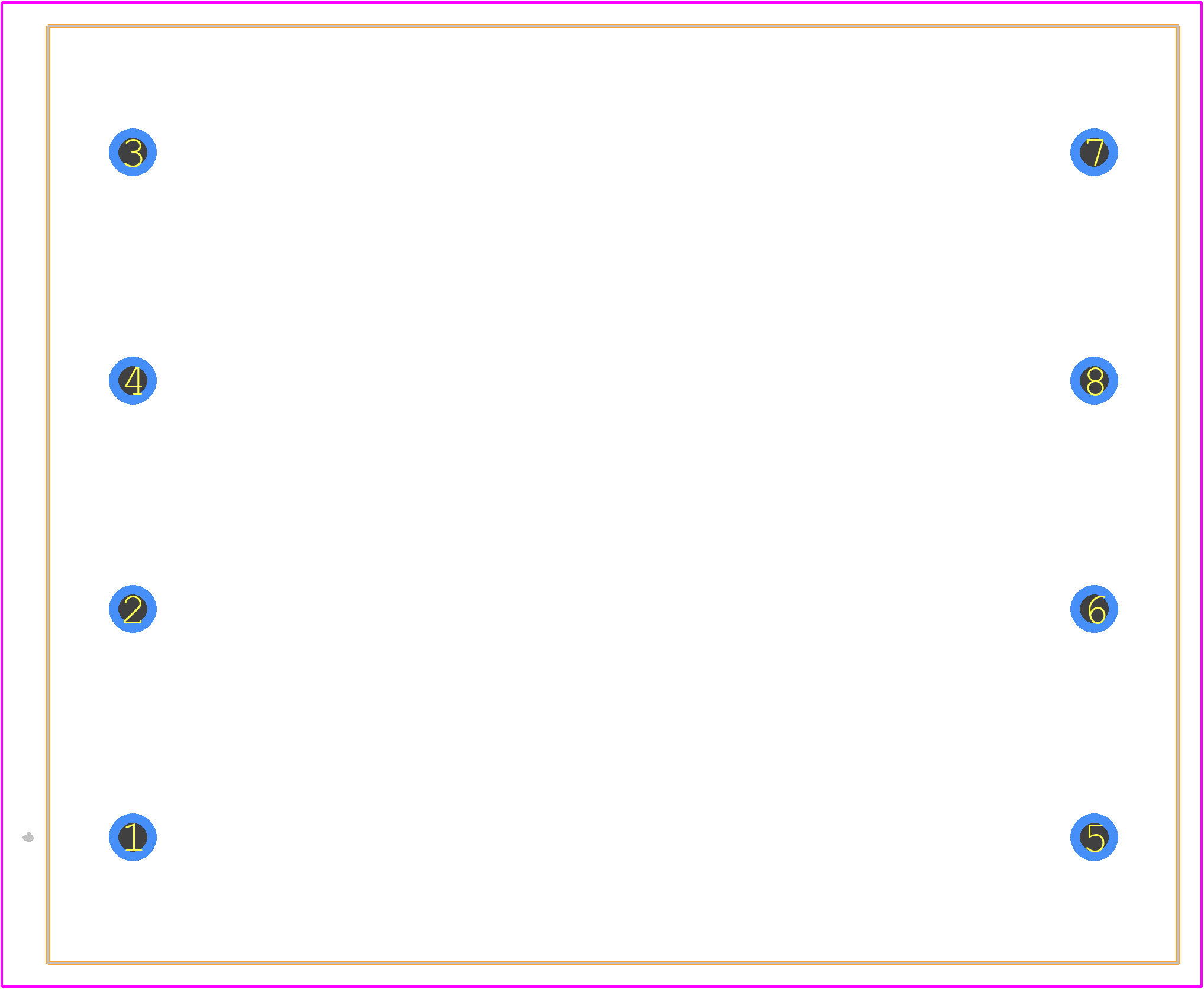

229A56 - Hammond Manufacturing PCB footprint - Other - Other - 229A56-4
click to zoom
3D Models
229A56 - Hammond Manufacturing - 3D model - Other - 229A56-4
click to zoom

229A56 Details

  • Manufacturer Part Number:

    229A56

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    21.59 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1750 V

  • Length:

    47.752 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.2 A

  • Output Voltage 1:

    28 V

  • Output Voltage 2:

    28 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    6 VA

  • Width:

    39.624 mm

229A56 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 229A56 is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 229A56 is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and screw torque procedures to ensure reliable operation.
  • The 229A56 has a rating of IP20, which means it's not suitable for outdoor use or exposure to moisture. If outdoor use is required, consider using a different enclosure or adding additional protection.
  • Yes, Hammond Manufacturing offers customization services for the 229A56. Contact their sales team or a authorized distributor to discuss your specific requirements.
  • The maximum operating temperature for the 229A56 is 130°C (266°F). However, it's recommended to derate the temperature based on the specific application and environmental conditions.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

229A56 Overview

Use the download button to access the 229A56 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 229A5, or try a keyword search, such as Power/Mains Transformers
