229D40 - Hammond Manufacturing

Description: Power Transformers XFMR 115/230V 40V

Download 229D40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

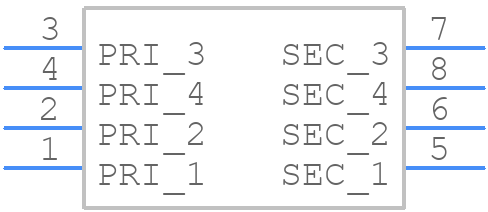

229D40 - Hammond Manufacturing - PCB symbol
click to zoom
PCB Footprints

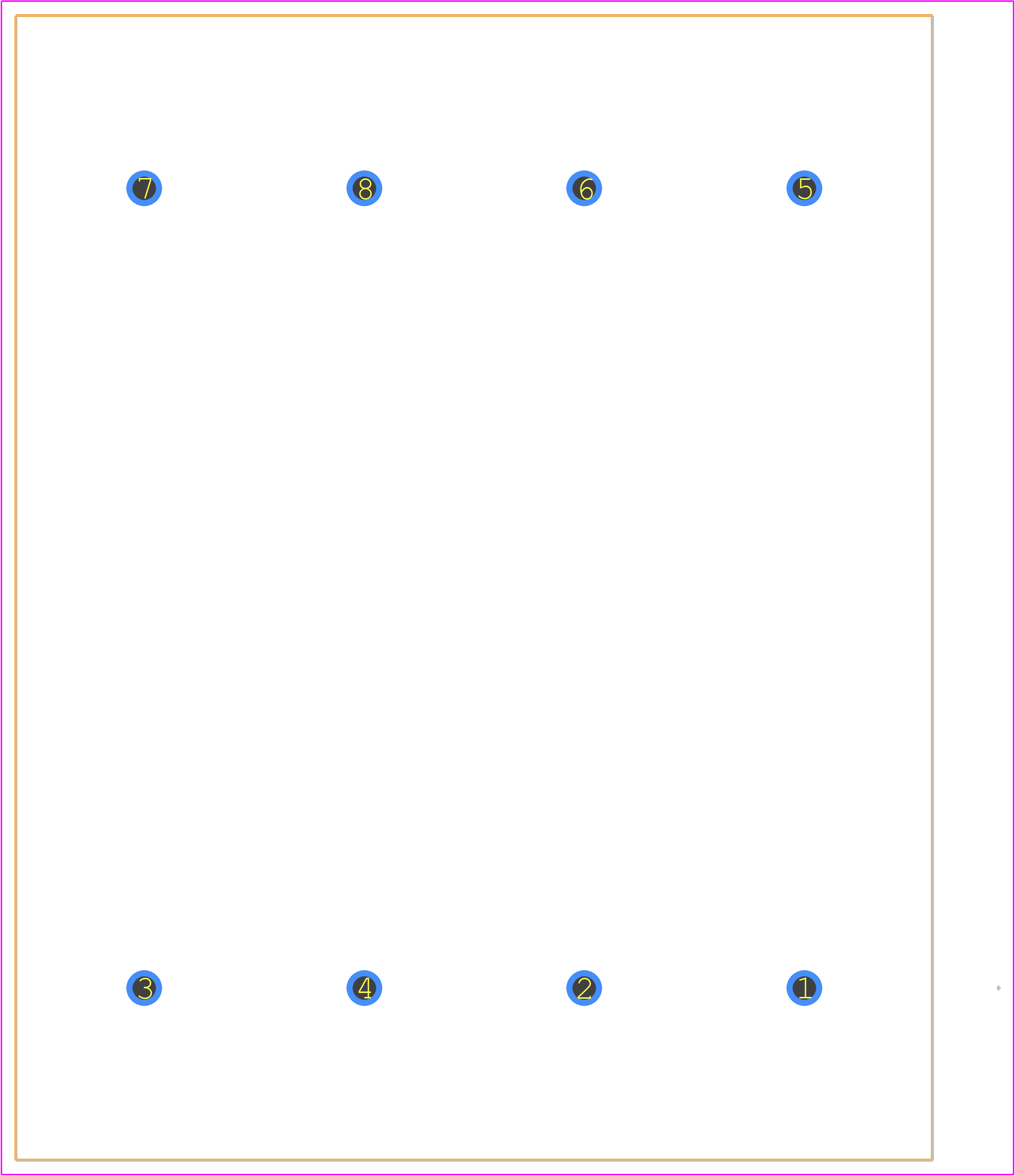

229D40 - Hammond Manufacturing PCB footprint - Other - Other - 229D40-4
click to zoom
3D Models
229D40 - Hammond Manufacturing - 3D model - Other - 229D40-4
click to zoom

229D40 Details

  • Manufacturer Part Number:

    229D40

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.65

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    35.052 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1750 V

  • Length:

    79.248 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    2.4 A

  • Output Voltage 1:

    20 V

  • Output Voltage 2:

    20 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    48 VA

  • Width:

    63.5 mm
