Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and minimize parasitic inductance.
To select the correct fuse rating, consider the maximum current and voltage ratings of your circuit. Bourns provides a fuse selection guide in their datasheet, which can help you determine the appropriate fuse rating based on your application's requirements.
The 2300HT-100-H-RC has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of applications. However, it's essential to note that the fuse's performance may vary at extreme temperatures.
Yes, the 2300HT-100-H-RC is designed for high-reliability applications and meets the requirements of various industry standards, including AEC-Q200 and IEC 60115-4-1. It's also manufactured with a robust construction and undergoes rigorous testing to ensure its reliability.
Yes, the 2300HT-100-H-RC is designed to withstand high-vibration environments and meets the requirements of IEC 60068-2-6. However, it's essential to ensure that the fuse is properly mounted and secured to the PCB to prevent any mechanical stress or damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2300HT-100-H-RC Overview

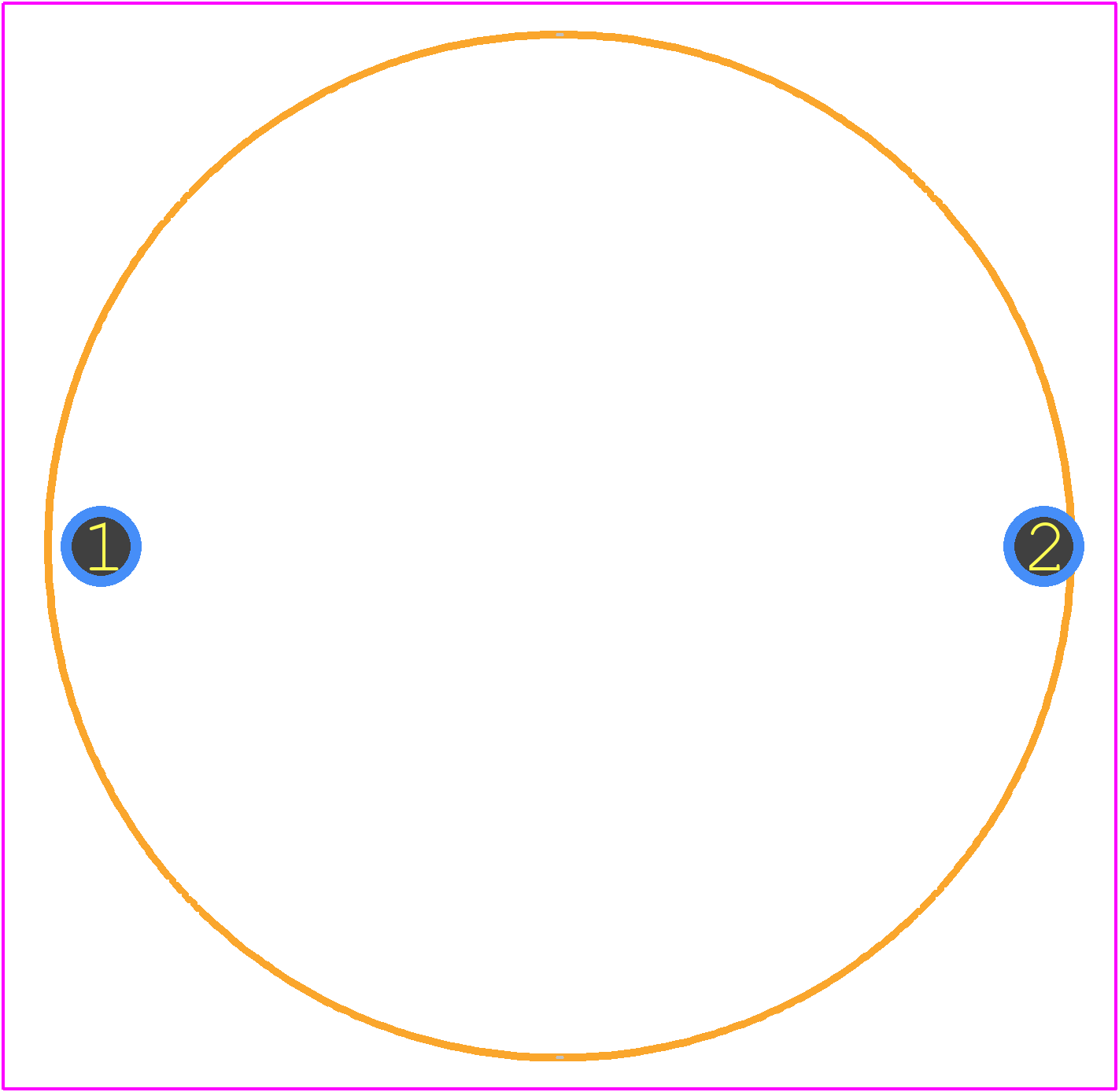

Use the download button to access the 2300HT-100-H-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2300H,
or try a keyword search, such as Fixed Inductors
