Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to minimize thermal resistance.
The 2300HT-101-H-RC has a high power rating, and proper thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout to minimize thermal resistance. You can also consider using thermal interface materials to improve heat transfer.
While the datasheet specifies an operating temperature range of -40°C to 150°C, it's essential to note that the device's performance and reliability may degrade above 125°C. It's recommended to operate the device within the -40°C to 125°C range for optimal performance.
The 2300HT-101-H-RC is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, it's recommended to consult with Bourns' technical support team to discuss specific requirements and potential customization options.
The 2300HT-101-H-RC meets various safety and regulatory standards, such as AEC-Q200 and IATF 16949. However, it's essential to review the specific requirements of your application and consult with Bourns' technical support team to ensure compliance with relevant standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2300HT-101-H-RC Overview

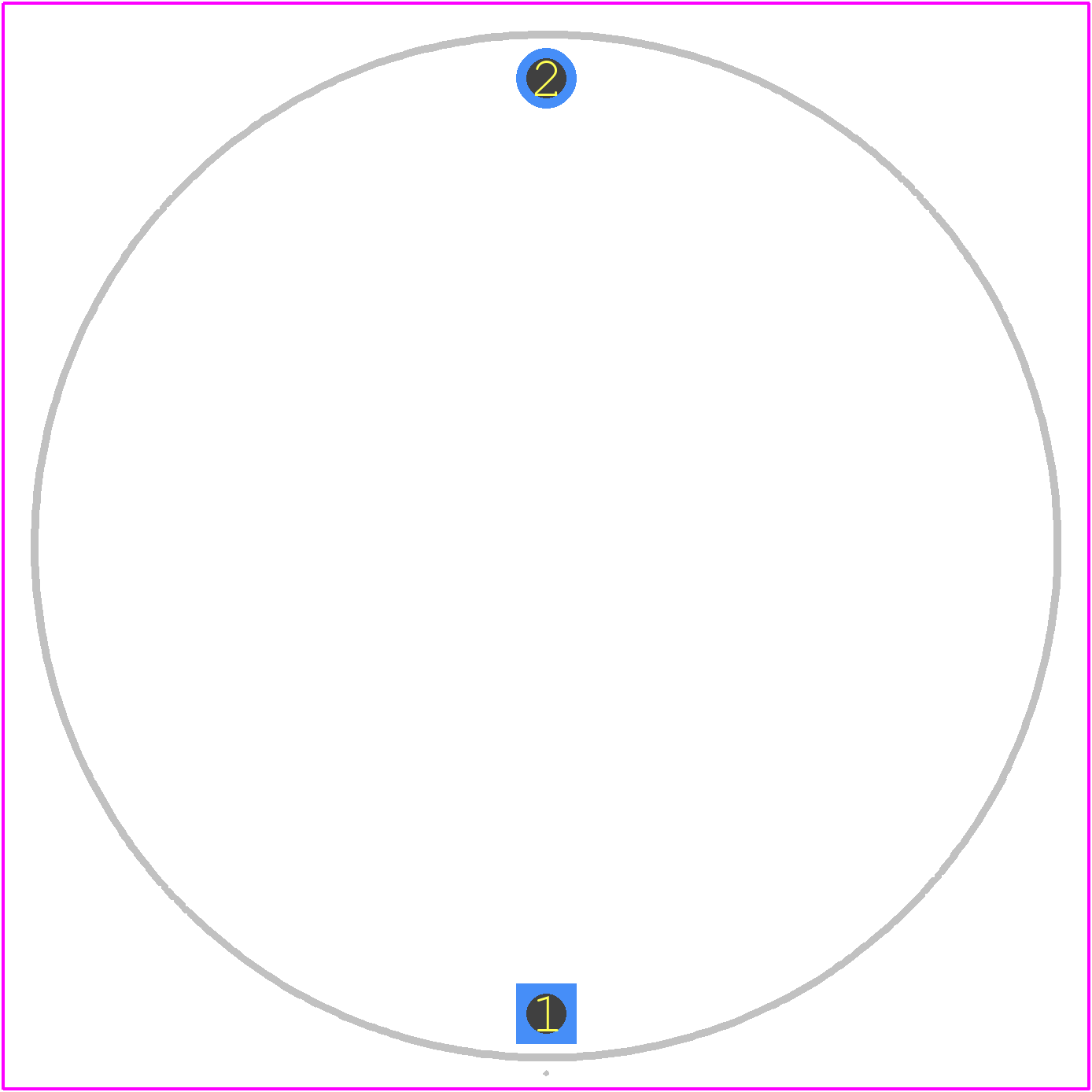

Use the download button to access the 2300HT-101-H-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2300H,
or try a keyword search, such as Fixed Inductors
