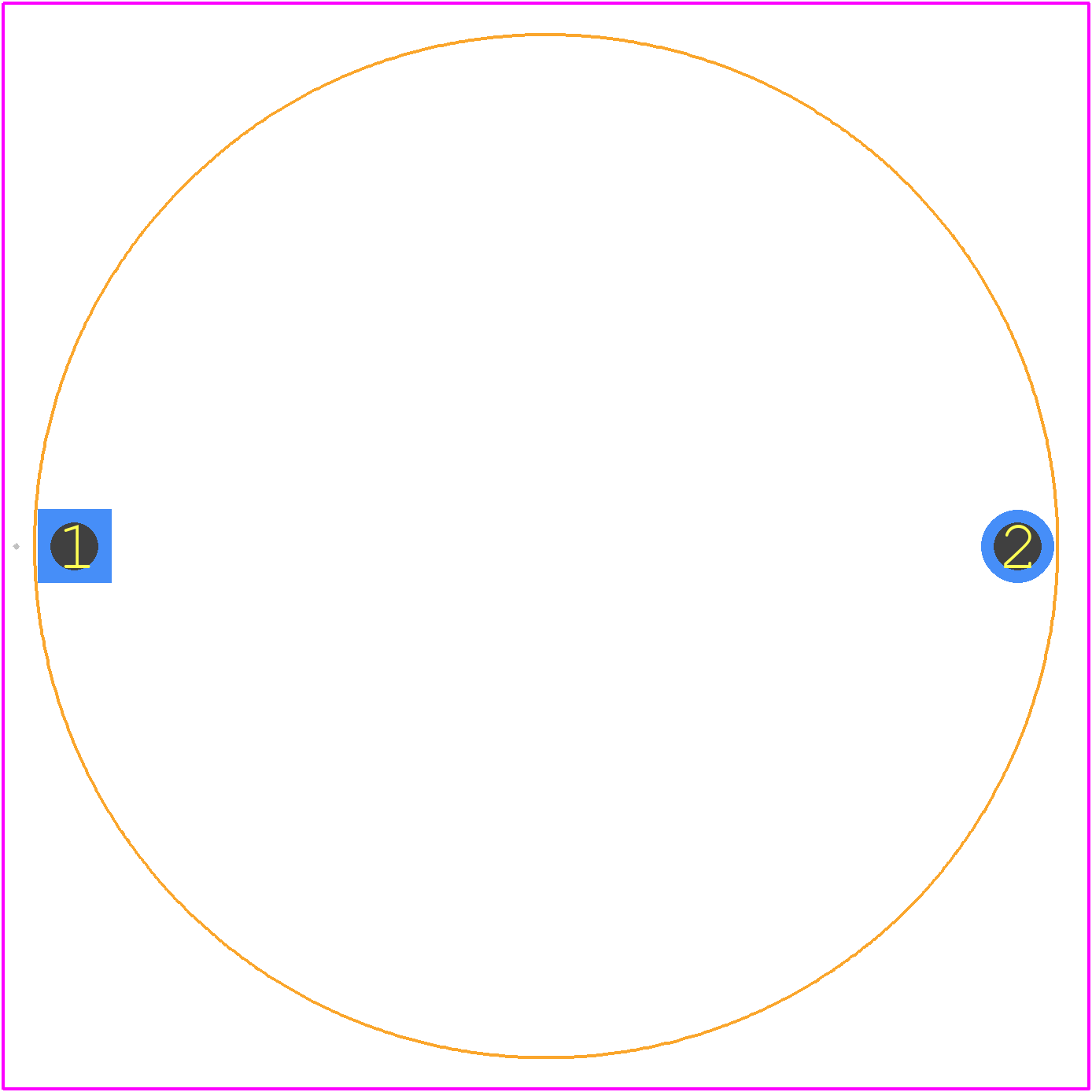

2300LL-330-H-RC footprint, schematic symbol and 3D model by Bourns

Symbol

PCB Footprints

3D Models

2300LL-330-H-RC Details

Bourns provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper mounting and to minimize thermal resistance.
Bourns recommends using a soldering iron with a temperature of 250°C to 270°C, and a solder with a melting point of 180°C to 200°C. It's also crucial to follow the recommended soldering profile and to avoid applying excessive force or pressure during the soldering process.
The 2300LL-330-H-RC has an operating temperature range of -40°C to 150°C. However, it's essential to note that the device's performance and reliability may be affected if operated at extreme temperatures for extended periods.
Bourns recommends handling the device by the body, avoiding touching the leads or electrical contacts. It's also essential to store the device in a dry, cool place, away from direct sunlight and moisture. Anti-static precautions should also be taken to prevent ESD damage.
Bourns recommends a torque value of 0.5 N·m to 1.5 N·m for the screw terminals. It's essential to follow this guideline to ensure proper connection and to prevent damage to the device or PCB.

Community Provided

System Verified

Community Approved

Use the download button to access the 2300LL-330-H-RC schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 2300L, or try a keyword search, such as Fixed Inductors
