2301845-1 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

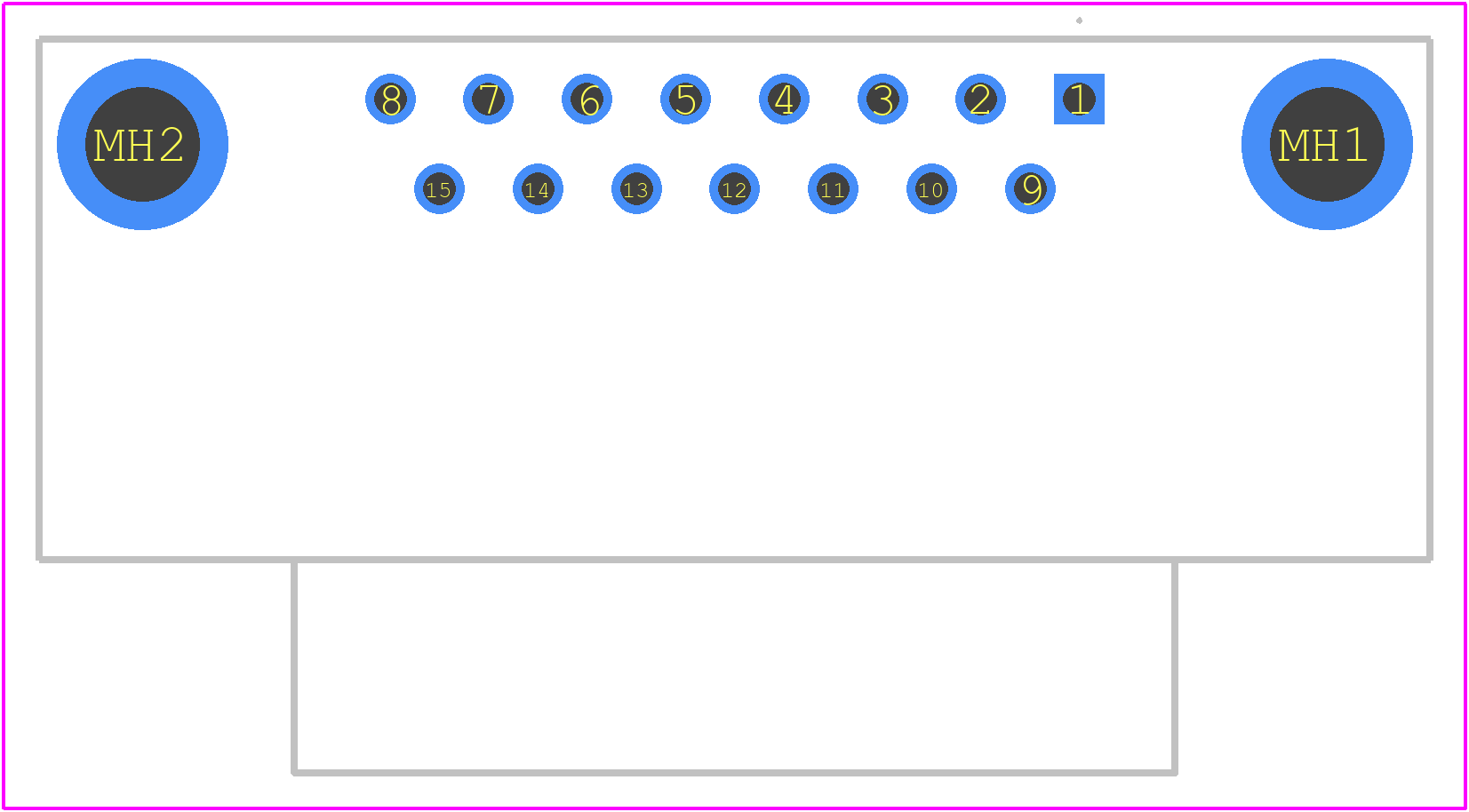

2301845-1 - TE Connectivity PCB footprint - Other - Other - 2301845-1-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2301845-1
Part Number 2301845-1
Manufacturer TE Connectivity
Pin Count 17
Part Category Connector
Package Category Other
Footprint Name Other - 2301845-1-2
Released Date Jan 12, 2024
Last Modified Date Apr 3, 2024 11:24 AM UTC
Pinout / Pin List Click Here (Member Only)

2301845-1 Details

Manufacturer Part Number:
2301845-1
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
9 Weeks, 4 Days
Manufacturer:
TE Connectivity
Board Mounting Option:
BOARD LOCK
Body/Shell Style:
RECEPTACLE
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Material:
NOT APPLICABLE
Contact Style:
RND PIN-SKT
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance:
NO
Mains Connector Rating:
2A
Mating Contact Row Spacing:
0.111 inch
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Rated Current (Signal):
2 A
Shell Size:
2/A
Terminal Pitch:
2.77 mm
Termination Type:
SOLDER

2301845-1 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals to ensure secure connections.
Yes, the 2301845-1 connector is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow TE Connectivity's guidelines for vibration testing and validation.
The 2301845-1 connector has a IP67 rating, making it suitable for outdoor use and harsh environments, but it's essential to follow proper sealing and installation procedures to maintain the rating.
The 2301845-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), but it's recommended to derate the connector's performance at extreme temperatures.
Yes, the 2301845-1 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors, but it's recommended to verify compatibility before designing your system.
