2301847-1 - TE Connectivity

Description: Body Features: Connector Profile High | Primary Product Color Black | Configuration Features: PCB Mount Orientation Vertical | Number of Rows 3 | Number of Positions 44 | Contact Features: Contact Current Rating (Max) 1.5 AMP | Contact Shape & Form Round | Dimensions: Row-to-Row Spacing 1.98 MM | Row-to-Row Spacing .077 INCH | Housing Features: Centerline (Pitch) 2.77 MM | Centerline (Pitch) .109 INCH | Housing Material PBT GF | Mechanical Attachment: Connector Mounting Type Board Mount | PCB Mount Retentio

Download 2301847-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

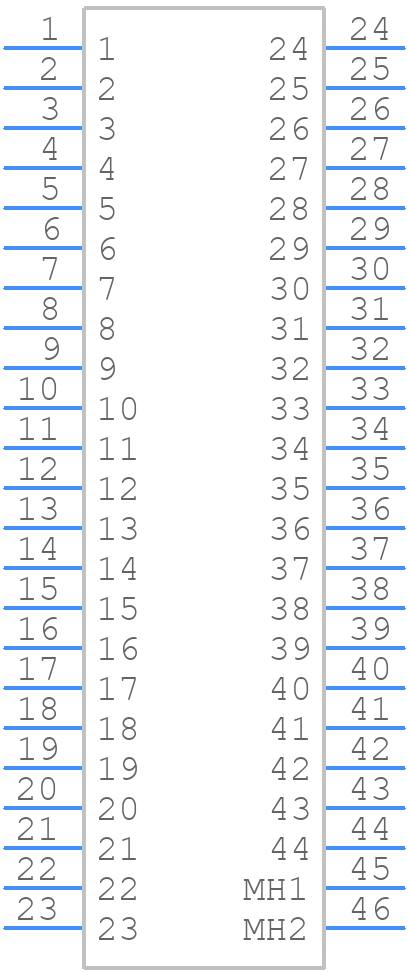

Symbol
2301847-1 - TE Connectivity - PCB symbol
click to zoom

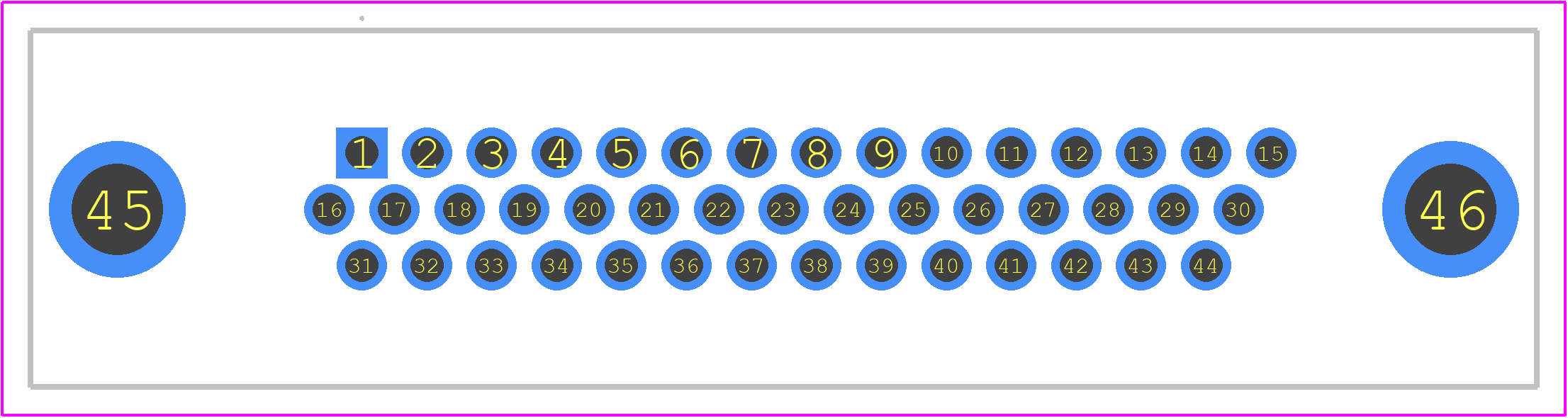

PCB Footprints
2301847-1 - TE Connectivity PCB footprint - Other - Other - 2301847-1-1
click to zoom
3D Models
2301847-1 - TE Connectivity - 3D model - Other - 2301847-1-1
click to zoom

2301847-1 Details

  • Manufacturer Part Number:

    2301847-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    9 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • Board Mounting Option:

    BOARD LOCK

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.5A

  • Mating Contact Row Spacing:

    0.077 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    1.5 A

  • Shell Size:

    3/B

  • Terminal Pitch:

    2.77 mm

  • Termination Type:

    SOLDER

2301847-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2301847-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate a range of wire sizes. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
  • The operating temperature range for the 2301847-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The 2301847-1 connector is designed to meet IP67 standards, which means it can withstand temporary immersion in water and exposure to certain chemicals. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific harsh environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2301847-1 Overview

Use the download button to access the 2301847-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23018, or try a keyword search, such as D Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
