2308-1DCG - Renesas Electronics

Description: The 2308 is a high-speed phase-lock loop (PLL) clock multiplier. It is designed to address high-speed clock distribution and multiplication applications. The zero delay is achieved by aligning the phase between the incoming clock and the output clock, operable within the range of 10 to 133MHz. The 2308 has two banks of four outputs each that are controlled via two select addresses. By proper selection of input addresses, both banks can be put in tri-state mode. In test mode, the PLL is turned off, and the i

Download 2308-1DCG Model
Schematic

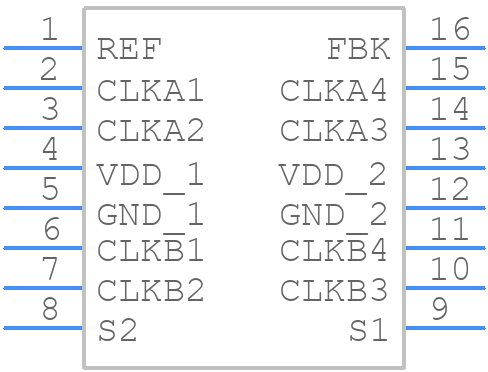

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2308-1DCG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG16 *
click to zoom
3D Models
2308-1DCG - Renesas Electronics  - 3D model - Small Outline Packages - DCG16 *
click to zoom

2308-1DCG Details

  • Manufacturer Part Number:

    2308-1DCG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    DCG16

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    2308

  • Input Conditioning:

    MUX

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    70 mA

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.2 ns

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • fmax-Min:

    133.3 MHz

2308-1DCG Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN3801EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
  • The 2308-1DCG has a built-in overcurrent protection feature, but it's recommended to add an external overcurrent detection circuit to ensure reliable protection. Renesas provides an example circuit in their application note (R01AN3801EJ0100) using a sense resistor and a comparator.
  • The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor (e.g., X5R or X7R) to ensure stable operation and minimize noise.
  • The output voltage of the 2308-1DCG can be adjusted by using an external resistor divider network connected to the FB pin. The recommended resistor values can be calculated using the formula provided in the datasheet.
  • The maximum ambient temperature for the 2308-1DCG is 85°C, but it's recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet to ensure reliable operation.
