2308-1HDCG8 - Renesas Electronics

Description: The 2308 is a high-speed phase-lock loop (PLL) clock multiplier. It is designed to address high-speed clock distribution and multiplication applications. The zero delay is achieved by aligning the phase between the incoming clock and the output clock, operable within the range of 10 to 133MHz. The 2308 has two banks of four outputs each that are controlled via two select addresses. By proper selection of input addresses, both banks can be put in tri-state mode. In test mode, the PLL is turned off, and the i

Download 2308-1HDCG8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

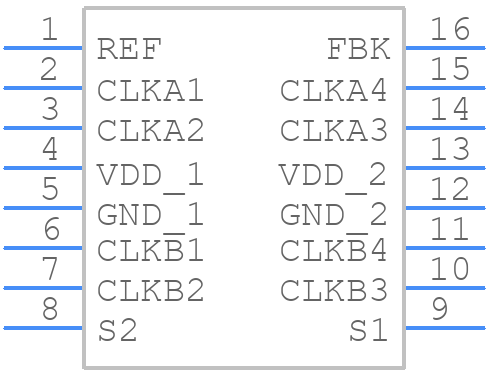

2308-1HDCG8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
2308-1HDCG8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG16 (SOIC 16)
click to zoom
3D Models
2308-1HDCG8 - Renesas Electronics - 3D model - Small Outline Packages - DCG16 (SOIC 16)
click to zoom

2308-1HDCG8 Details

  • Manufacturer Part Number:

    2308-1HDCG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    DCG16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    2308

  • Input Conditioning:

    MUX

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Power Supply Current-Max (ICC):

    70 mA

  • Same Edge Skew-Max (tskwd):

    0.2 ns

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • fmax-Min:

    133.3 MHz

2308-1HDCG8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4301EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device. The datasheet provides guidelines for selecting the appropriate protection components.
  • According to Renesas, the maximum allowed voltage on the VCC pin during power-up is 4.5V. Exceeding this voltage may cause damage to the device or affect its reliability.
  • Renesas provides EMC design guidelines in their application note (R01AN4301EJ0100), which include recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference.
  • The recommended operating temperature range for the 2308-1HDCG8 is -40°C to 125°C. However, Renesas recommends derating the device's performance at temperatures above 85°C to ensure reliable operation.
