2308-2DCGI - Renesas Electronics

Description: The 2308 is a high-speed phase-lock loop (PLL) clock multiplier. It is designed to address high-speed clock distribution and multiplication applications. The zero delay is achieved by aligning the phase between the incoming clock and the output clock, operable within the range of 10 to 133MHz. The 2308 has two banks of four outputs each that are controlled via two select addresses. By proper selection of input addresses, both banks can be put in tri-state mode. In test mode, the PLL is turned off, and the i

Download 2308-2DCGI Model

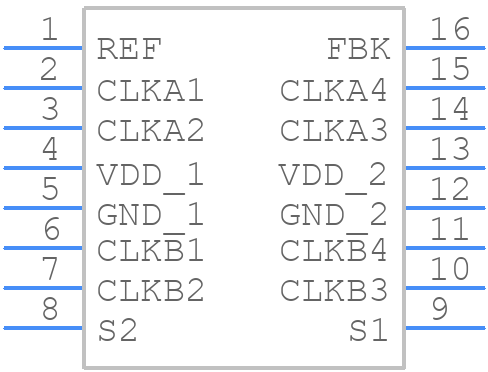

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2308-2DCGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG16 *
click to zoom
3D Models
2308-2DCGI - Renesas Electronics  - 3D model - Small Outline Packages - DCG16 *
click to zoom

2308-2DCGI Details

  • Manufacturer Part Number:

    2308-2DCGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    DCG16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    2308

  • Input Conditioning:

    MUX

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    70 mA

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.2 ns

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • fmax-Min:

    133.3 MHz

2308-2DCGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN3804EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device. The datasheet provides guidelines for selecting the appropriate protection components.
  • According to Renesas, the maximum allowed voltage on the VCC pin during power-up and power-down sequences is 4.5V to prevent damage to the internal voltage regulator. A soft-start circuit can be implemented to ensure a controlled voltage ramp-up.
  • Renesas provides EMC design guidelines in their application note (R01AN3804EJ0100), including recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference.
  • The recommended operating temperature range for the 2308-2DCGI is -40°C to 125°C, as specified in the datasheet. However, it's essential to consider the device's thermal characteristics and implement proper thermal management to ensure reliable operation.
