2308107-1 - TE Connectivity

Description: Double Data Rate (DDR) 4, Board-to-Bus Bar, 288 Position, Through Hole - Solder, Vertical Module Orientation, DDR4 DIMM, DIMM Sockets

Download 2308107-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2308107-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

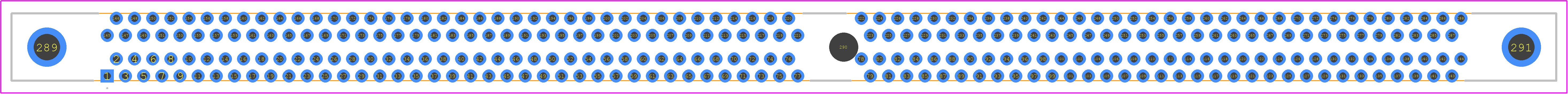

2308107-1 - TE Connectivity PCB footprint - Other - Other - 2308107-1-1
click to zoom
3D Models
2308107-1 - TE Connectivity - 3D model - Other - 2308107-1-1
click to zoom

2308107-1 Details

  • Manufacturer Part Number:

    2308107-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Board Mounting Option:

    BOARD LOCK

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .75A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Rated Current (Signal):

    0.75 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.85 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    288

  • UL Flammability Code:

    94V-0

2308107-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2308107-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as industrial control systems, transportation, and more.
  • The 2308107-1 connector has a rating of IP67, which means it provides protection against solid objects and water immersion up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating in outdoor environments.
  • The 2308107-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications, including industrial, automotive, and more.
  • While the datasheet specifies AWG 24-18 wire sizes, the connector can accommodate other wire sizes with the use of appropriate wire adapters or terminals. However, it's essential to ensure that the wire size and type meet the connector's electrical and mechanical requirements.
