Description:The 2308A is a high-speed phase-lock loop (PLL) clock multiplier. It is designed to address high-speed clock distribution and multiplication applications. The zero delay is achieved by aligning the phase between the incoming clock and the output clock, operable within the range of 10 to 133MHz. The 2308A has two banks of four outputs each that are controlled via two select addresses. By proper selection of input addresses, both banks can be put in tri-state mode. In test mode, the PLL is turned off, and the
Renesas provides a recommended PCB layout guide in their application note (R01AN4301EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
The 2308A-4DCGI8 has a built-in overcurrent protection feature, but it's recommended to add external overcurrent protection circuitry, such as a current sense resistor and a comparator, to provide additional protection and flexibility. Renesas provides an example circuit in their application note (R01AN4301EJ0100).
Renesas recommends a specific power-up sequence to ensure proper operation and prevent damage to the device. The recommended sequence is: VCC, then VDD, and finally EN (enable) signal. This sequence is detailed in the datasheet and application notes.
Renesas provides a troubleshooting guide in their application note (R01AN4301EJ0100) that covers common issues, such as power supply voltage, input/output voltage, and temperature-related problems. Additionally, Renesas offers a support portal and FAQs on their website to help engineers troubleshoot and resolve issues.
Yes, Renesas provides EMI/EMC design guidelines in their application note (R01AN4301EJ0100) to minimize electromagnetic interference and ensure compliance with regulatory standards. These guidelines include PCB layout, component selection, and shielding recommendations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2308A-4DCGI8 Overview

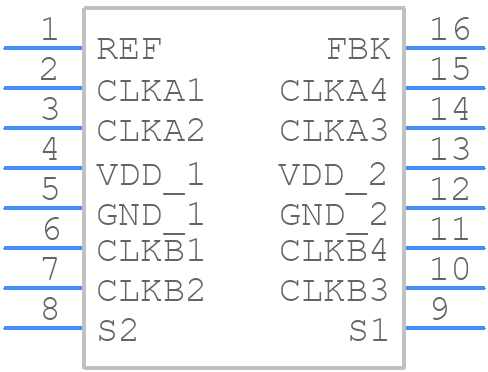

Use the download button to access the 2308A-4DCGI8 schematic symbol, PCB footprint, and 3D model.
