2309409-1 - TE Connectivity

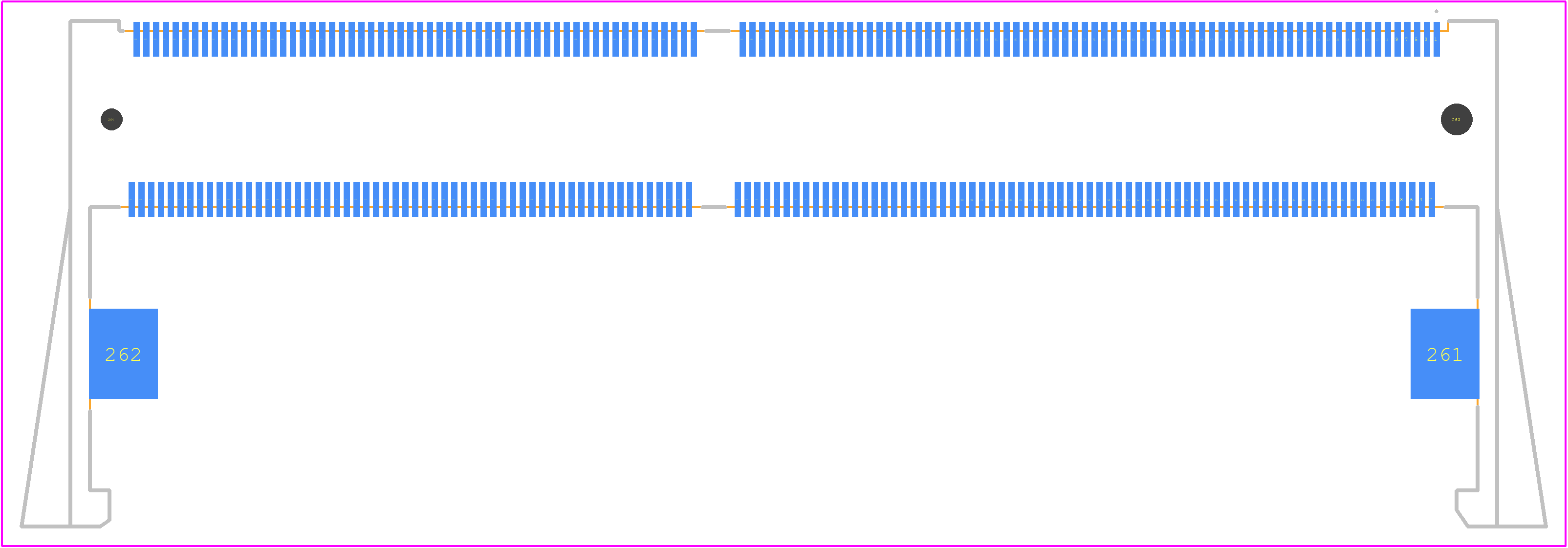

2309409-1 Details

• Manufacturer Part Number:

  2309409-1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  TE Connectivity

• YTEOL:

  9

• Additional Feature:

  LOW PROFILE

• Board Mounting Option:

  PEG

• Body Breadth:

  0.205 inch

• Body Depth:

  1.018 inch

• Body Length:

  2.874 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  CARD EDGE CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  STAGGERED

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulator Color:

  BLACK

• Insulator Material:

  POLYETHYLENE

• MIL Conformance:

  NO

• Mains Connector Rating:

  .5A

• Mating Contact Pitch:

  0.019 inch

• Mating Contact Row Spacing:

  0.322 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  HOLE .03-.06

• Mounting Option 2:

  MOUNTING PEG

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  8.2 mm

• Panel Mount:

  NO

• Plating Thickness:

  FLASH inch

• Polarization Key:

  POLARIZED KEY

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.5 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  260

• UL Flammability Code:

  94V-0
