2309410-3 - TE Connectivity

Description: Body Features: Ejector Location Both Ends | Connector Profile Low | Latch Material High Temperature Thermoplastic | Retention Post Location Both Ends | Ejector Type Locking | Retention Post Material Copper Alloy | Configuration Features: Number of Rows 2 | Module Orientation Right Angle | Number of Positions 200 | Number of Keys 1 | Number of Positions 260 | Contact Features: Memory Socket Type Memory Card | PCB Contact Termination Area Plating Material Gold Flash | Contact Current Rating (Max) .5 AMP | Con

Download 2309410-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2309410-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

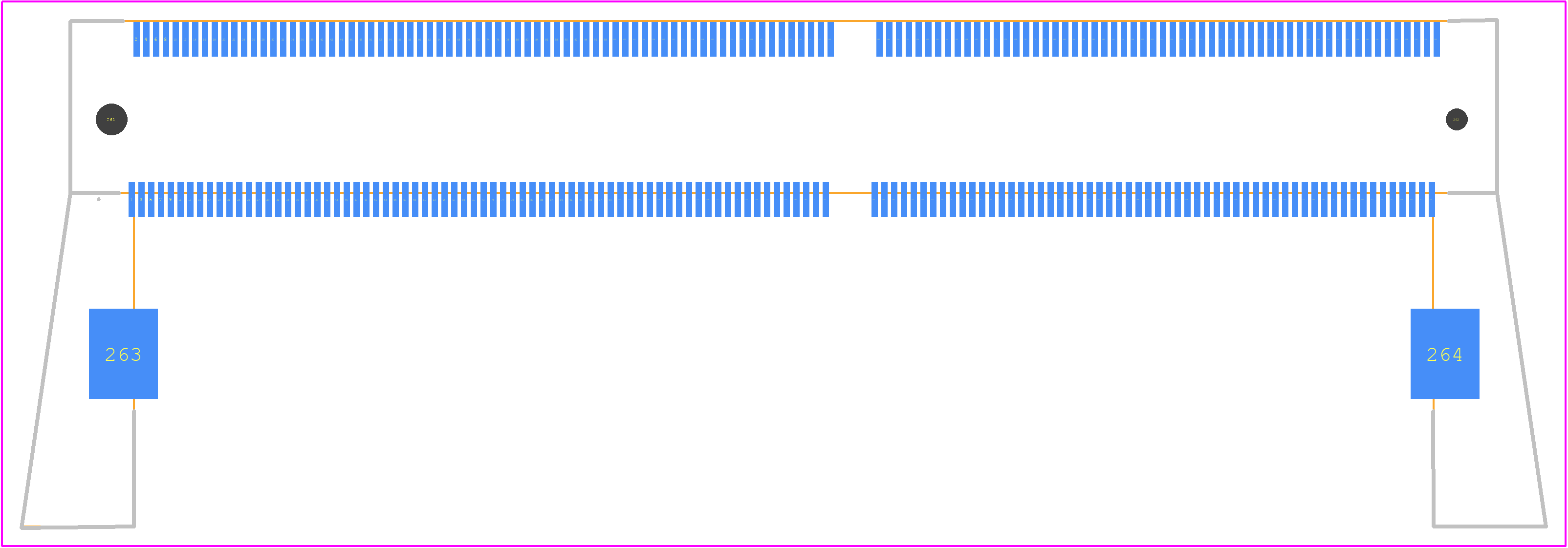

2309410-3 - TE Connectivity PCB footprint - Other - Other - 2309410-3-2
click to zoom
3D Models
2309410-3 - TE Connectivity - 3D model - Other - 2309410-3-2
click to zoom

2309410-3 Details

  • Manufacturer Part Number:

    2309410-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Additional Feature:

    LOW PROFILE

  • Board Mounting Option:

    PEG

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mating Contact Row Spacing:

    0.322 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    260

  • UL Flammability Code:

    94V-0

2309410-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 2309410-3 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • While the datasheet specifies AWG 24-18 wire sizes, the connector can accommodate other wire sizes with the use of adapters or specialized contacts. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure proper compatibility and performance.
  • The 2309410-3 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications, including those with extreme temperature fluctuations.
  • The 2309410-3 connector is designed to be resistant to harsh environments, including high humidity and exposure to chemicals. It meets the IEC 60529 IP67 standard for ingress protection, ensuring reliable performance in demanding applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2309410-3 Overview

Use the download button to access the 2309410-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23094, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
