2309411-1 - TE Connectivity

Description: Body Features: Latch Material High Temperature Thermoplastic | Ejector Location Both Ends | Retention Post Material Stainless Steel | Ejector Type Locking | Connector Profile High | Retention Post Location Both Ends | Module Key Type Offset Left | Configuration Features: Module Orientation Right Angle | Number of Positions 260 | Number of Rows 2 | Number of Keys 1 | Contact Features: Contact Mating Area Plating Material Gold Flash | PCB Contact Termination Area Plating Material Gold Flash | Contact Underpla

Download 2309411-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2309411-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

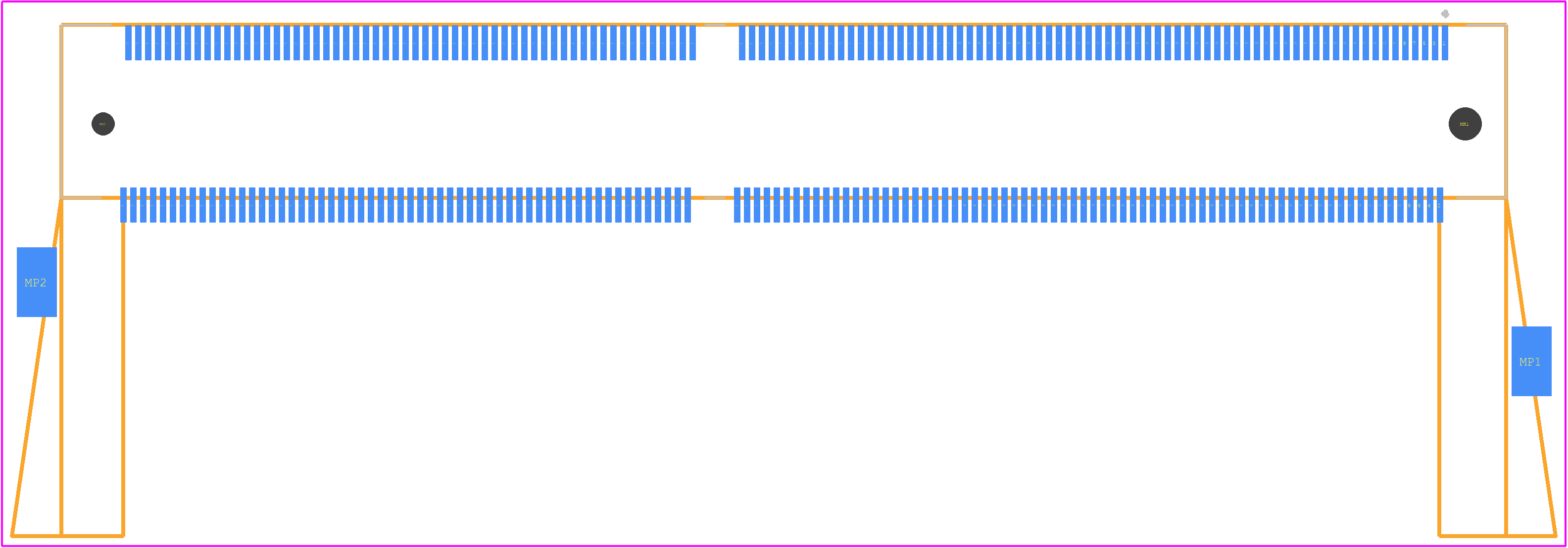

2309411-1 - TE Connectivity PCB footprint - Other - Other - 2309411-1-1
click to zoom
3D Models
2309411-1 - TE Connectivity - 3D model - Other - 2309411-1-1
click to zoom

2309411-1 Details

  • Manufacturer Part Number:

    2309411-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    3 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.68

  • Board Mounting Option:

    PEG

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mating Contact Row Spacing:

    0.322 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    260

  • UL Flammability Code:

    94V-0
