2309413-4 - TE Connectivity

Description: Body Features: Module Key Type Offset Left | Ejector Location Both Ends | Ejector Type Locking | Retention Post Location Both Ends | Retention Post Material Stainless Steel | Connector Profile High | Latch Material High Temperature Thermoplastic | Configuration Features: Number of Positions 260 | Module Orientation Right Angle | Number of Keys 1 | Number of Rows 2 | Contact Features: Memory Socket Type Memory Card | Contact Underplating Material Nickel | Contact Mating Area Plating Material Gold | Contact C

Download 2309413-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2309413-4 - TE Connectivity - PCB symbol
click to zoom

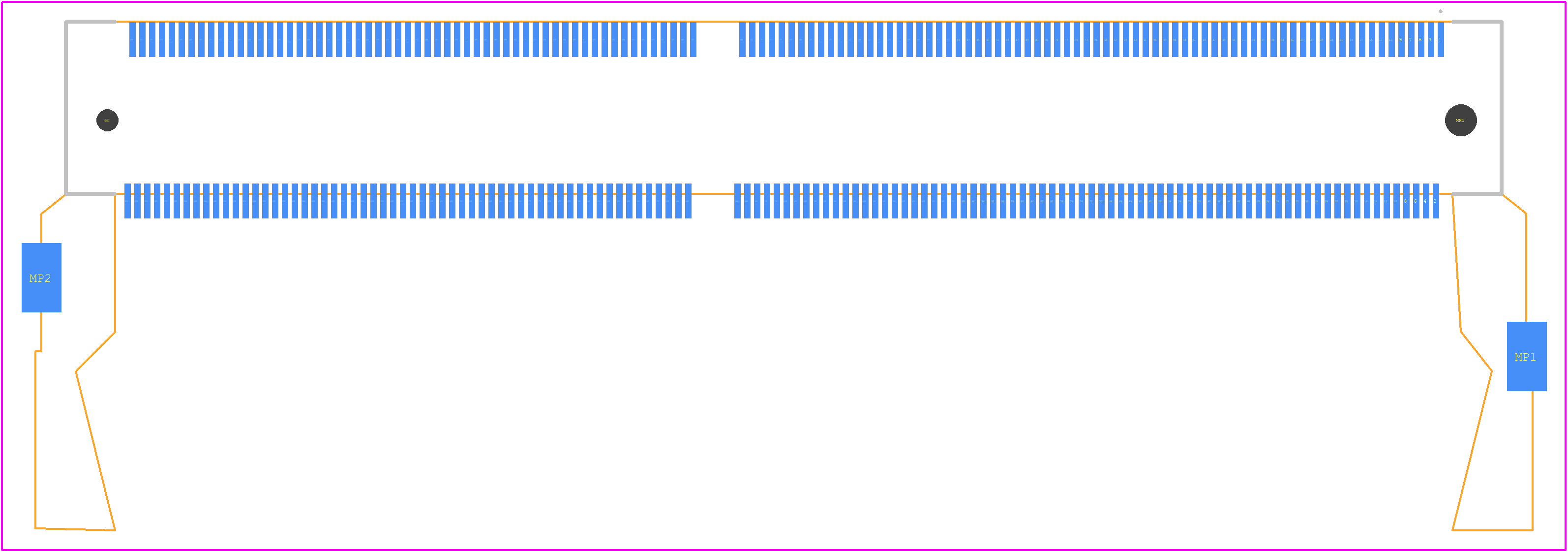

PCB Footprints
2309413-4 - TE Connectivity PCB footprint - Other - Other - 2309413-4-1
click to zoom
3D Models
2309413-4 - TE Connectivity - 3D model - Other - 2309413-4-1
click to zoom

2309413-4 Details

  • Manufacturer Part Number:

    2309413-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Board Mounting Option:

    PEG

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mating Contact Row Spacing:

    0.322 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    260

  • UL Flammability Code:

    94V-0

2309413-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2309413-4 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as industrial control systems, transportation, and more.
  • The 2309413-4 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its performance and reliability.
  • The 2309413-4 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the 2309413-4 connector is designed for use with 24 AWG wire, it can accommodate wire sizes between 20 AWG and 26 AWG. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to maintain reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2309413-4 Overview

Use the download button to access the 2309413-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23094, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
