231-554/001-000 - Wago

Description: THT male header; 1.0 x 1.0 mm solder pin; angled; Pin spacing 5.08 mm; 24-pole

Download 231-554/001-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
231-554/001-000 - Wago - PCB symbol
click to zoom
PCB Footprints

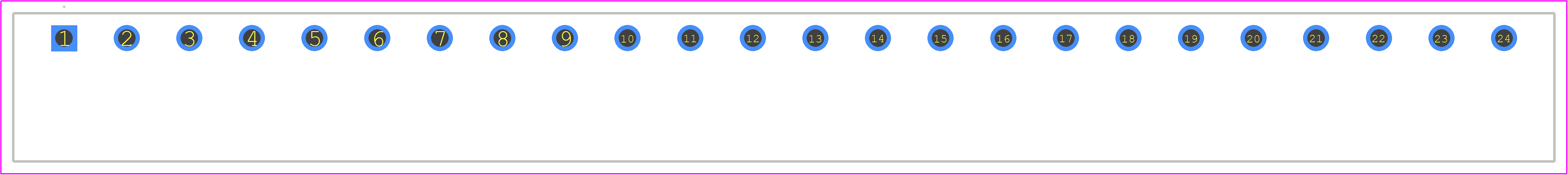

231-554/001-000 - Wago PCB footprint - Other - Other - 231-554/001-000-1
click to zoom
3D Models
231-554/001-000 - Wago - 3D model - Other - 231-554/001-000-1
click to zoom

231-554/001-000 Details

  • Manufacturer Part Number:

    231-554/001-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.57

  • Additional Feature:

    STANDARD: 94V-0, POLYAMIDE66, SAFETY APPROVAL: KEMA; KEUR; UL

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    24

  • Rated Current:

    10 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    ABS; BV; CB; CSA; EN; IEC

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

231-554/001-000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 1.2 Nm, as specified in the WAGO application notes.
  • Yes, the 231-554/001-000 connector is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10g.
  • Yes, the connector is rated IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • The maximum operating temperature for the 231-554/001-000 connector is 125°C, as specified in the datasheet.
  • Yes, the connector is designed to accept stranded wire with a minimum of 0.5 mm² and a maximum of 2.5 mm² cross-sectional area.
