Part Image

2311586-2 - TE Connectivity

Description: Body Features: Connector Profile Standard | Primary Product Color Blue | Configuration Features: Number of Rows 3 | PCB Mount Orientation Right Angle | Number of Positions 15 | Contact Features: Contact Current Rating (Max) 3 AMP | Contact Shape & Form Round | Dimensions: Row-to-Row Spacing .077 INCH | Row-to-Row Spacing 1.98 MM | Housing Features: Centerline (Pitch) .09 INCH | Centerline (Pitch) 2.29 MM | Housing Material PA 9T GF | Mechanical Attachment: Connector Mounting Type Board Mount | PCB Mount Ret

Download 2311586-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2311586-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

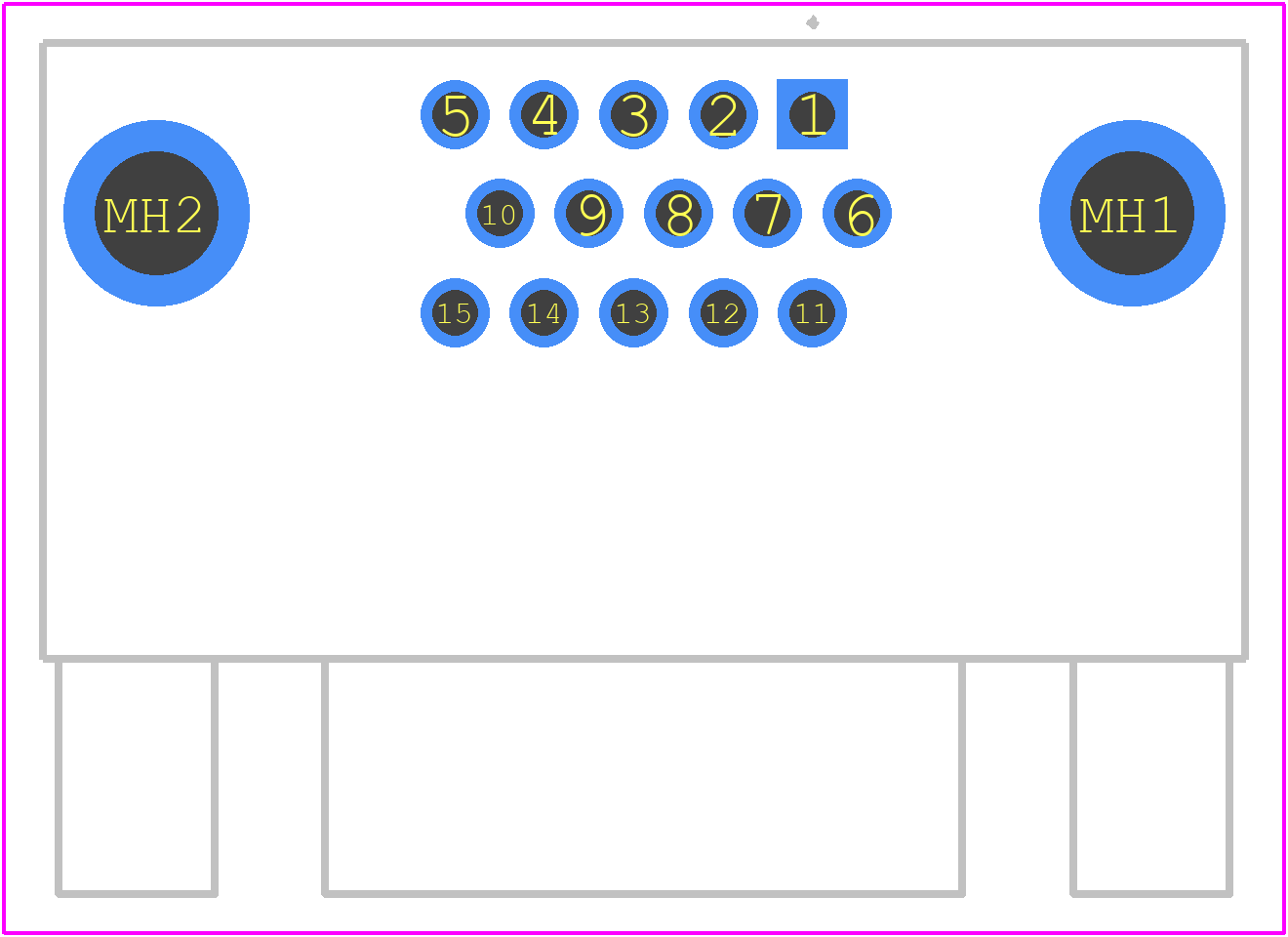

2311586-2 - TE Connectivity PCB footprint - Other - Other - 2311586-2-1
click to zoom

2311586-2 Details

  • Manufacturer Part Number:

    2311586-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    9 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Board Mounting Option:

    BOARD LOCK

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLUE

  • Insulator Material:

    GLASS FILLED POLYAMIDE9T

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mating Contact Row Spacing:

    0.077 inch

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    SCREWLOCKS

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Shell Size:

    1/E

  • Terminal Pitch:

    2.29 mm

  • Termination Type:

    SOLDER

2311586-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 2311586-2 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet recommends AWG 20-18 wire sizes, the connector can accommodate smaller wire sizes (up to AWG 22) with proper wire stripping and termination. However, using larger wire sizes may require additional processing or specialized tools.
  • The 2311586-2 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity levels up to 95%. However, it's essential to follow proper sealing and protection procedures to ensure the connector remains functional in harsh environments.
  • Yes, it's essential to follow proper safety guidelines when working with electrical connectors. Ensure proper insulation, avoid over-tightening or under-tightening the screw terminals, and follow proper handling and storage procedures to prevent electrical shock or damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2311586-2 Overview

Use the download button to access the 2311586-2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 23115, or try a keyword search, such as D Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
