2311586-5 - TE Connectivity

Description: Body Features: Primary Product Color Blue | Connector Profile Standard | Configuration Features: Number of Rows 3 | PCB Mount Orientation Right Angle | Number of Positions 15 | Contact Features: Contact Current Rating (Max) 3 AMP | Contact Shape & Form Round | Dimensions: Row-to-Row Spacing 1.98 MM | Row-to-Row Spacing .077 INCH | Housing Features: Centerline (Pitch) .09 INCH | Centerline (Pitch) 2.29 MM | Housing Material PA 9T GF | Mechanical Attachment: PCB Mount Retention Type Boardlock | Mating Retenti

Download 2311586-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2311586-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

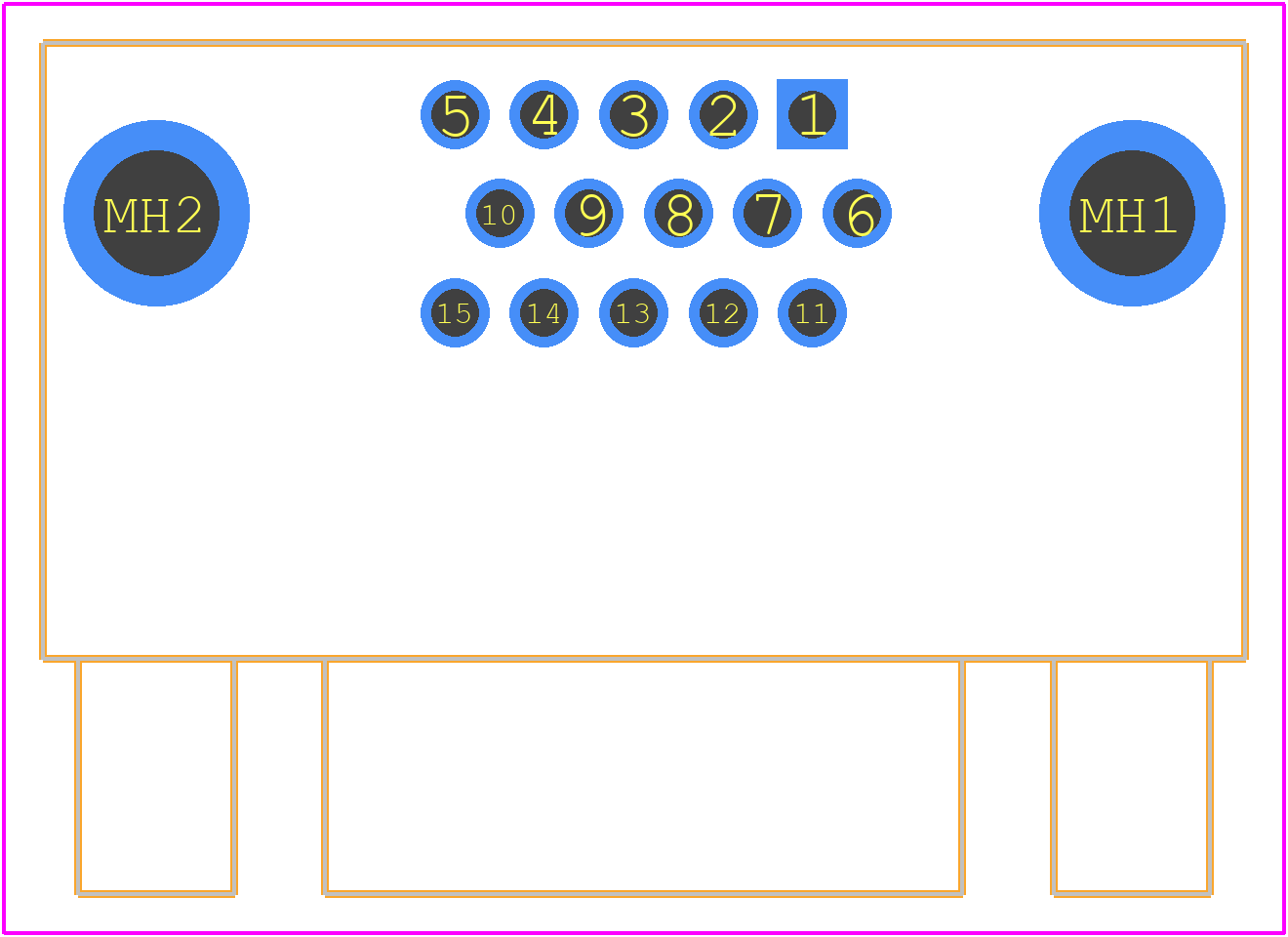

2311586-5 - TE Connectivity PCB footprint - Other - Other - 2311586-5-2
click to zoom
3D Models
2311586-5 - TE Connectivity - 3D model - Other - 2311586-5-2
click to zoom

2311586-5 Details

  • Manufacturer Part Number:

    2311586-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    9 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Board Mounting Option:

    BOARD LOCK

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLUE

  • Insulator Material:

    GLASS FILLED POLYAMIDE9T

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mating Contact Row Spacing:

    0.077 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Shell Size:

    1/E

  • Terminal Pitch:

    2.29 mm

  • Termination Type:

    SOLDER

2311586-5 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 2311586-5 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 2311586-5 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • Yes, it's recommended to follow TE Connectivity's PCB layout guidelines to ensure proper clearance, spacing, and thermal management. Consult their application notes and design guides for more information.
  • The 2311586-5 connector is designed to withstand some environmental stressors, but it's essential to consult TE Connectivity's environmental testing data and application notes to determine its suitability for your specific application.
