2311772-1 - TE Connectivity

Description: D-Sub High Density Connectors AMPL REC, HD22 R/A, 78P, THREADED

Download 2311772-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2311772-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

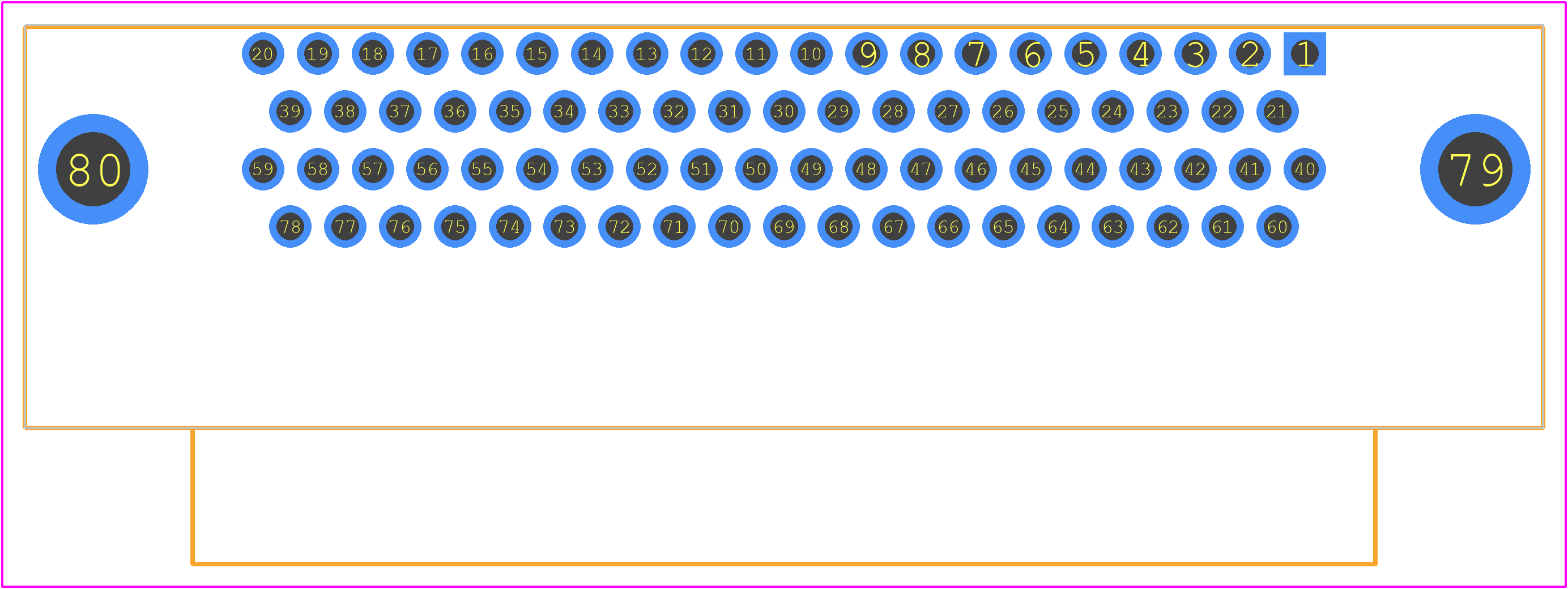

2311772-1 - TE Connectivity PCB footprint - Other - Other - 2311772-1-2
click to zoom
3D Models
2311772-1 - TE Connectivity - 3D model - Other - 2311772-1-2
click to zoom

2311772-1 Details

  • Manufacturer Part Number:

    2311772-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    5 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.5

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    5/D

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    78

  • UL Flammability Code:

    94V-0

2311772-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 2311772-1 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial automation, transportation, and aerospace.
  • The 2311772-1 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F) and can withstand humidity up to 95% RH. However, it's essential to follow proper installation and sealing guidelines to ensure optimal performance.
  • The maximum current rating for each contact is 3A, but it's essential to consider the overall system design, wire gauge, and operating conditions to ensure safe and reliable operation.
  • Yes, the 2311772-1 connector is designed to meet the requirements of high-reliability applications, including medical and aerospace industries, due to its robust design, high-quality materials, and rigorous testing.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2311772-1 Overview

Use the download button to access the 2311772-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23117, or try a keyword search, such as D Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
