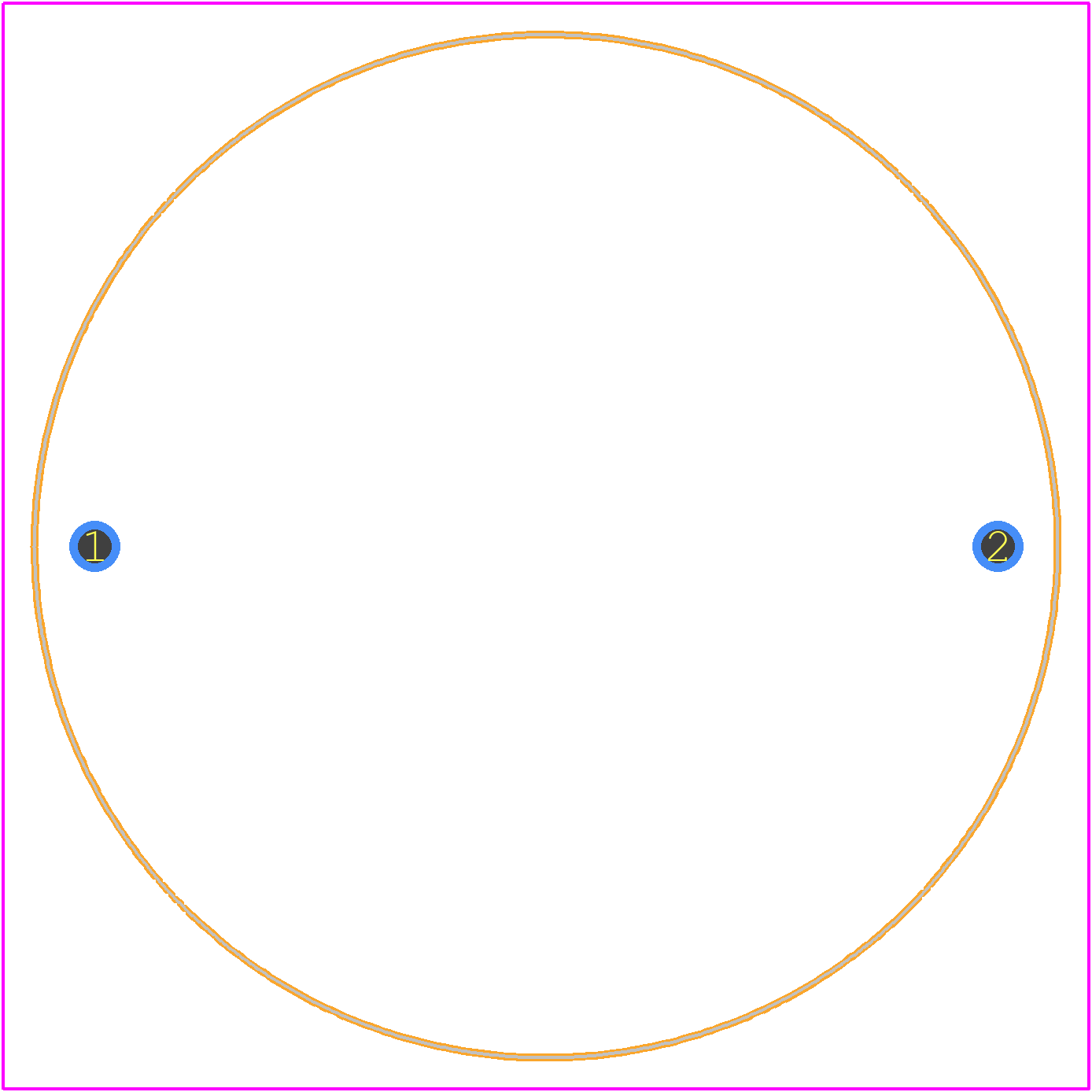

PCB Footprints

3D Models

2312-H-RC Details

Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper thermal management, minimize electromagnetic interference, and optimize signal integrity.
The 2312-H-RC is designed to provide excellent high-frequency noise suppression and EMI filtering. The device's internal construction and materials are optimized to minimize electromagnetic radiation and susceptibility.
The 2312-H-RC is rated for operation from -40°C to +125°C. However, it's essential to consider derating and thermal management to ensure reliable operation within this range.
Yes, the 2312-H-RC is designed and manufactured to meet the requirements of high-reliability and safety-critical applications. Bourns provides additional documentation and support for these applications upon request.
Lead times and availability may vary depending on the region, distributor, and quantity. It's recommended to check with authorized distributors or Bourns' customer support for the most up-to-date information.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 2312-H-RC schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 2312-, or try a keyword search, such as Fixed Inductors
