Description:Body Features: Primary Product Color Black | Connector & Keying Code A | Configuration Features: PCB Mount Orientation Vertical | Number of Rows 2 | Number of Positions 16 | Contact Features: Contact Type Tab | Mating Tab Thickness .015 INCH | Mating Tab Width .5 MM | Contact Current Rating (Max) 3 AMP | Contact Mating Area Plating Material Tin | Mating Tab Thickness .4 MM | Mating Tab Width .019 INCH | Contact Size .5mm | Housing Features: Centerline (Pitch) .07 INCH | Centerline (Pitch) 1.8 MM | Industry
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 2317531-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines. However, it's crucial to verify the wire size and termination method to ensure reliable connections.
The 2317531-1 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity levels up to 95%. However, it's essential to follow TE Connectivity's guidelines for environmental sealing and protection to ensure the connector's reliability in harsh conditions.
Yes, to ensure reliable connections and prevent damage to the connector or PCB, it's essential to follow TE Connectivity's PCB layout guidelines, including keeping the PCB traces away from the connector's mounting holes and ensuring sufficient clearance around the connector.
Trust Checks
No trust score is available for this model.
Trust Score Unavailable
Sponsored
2317531-1 Overview

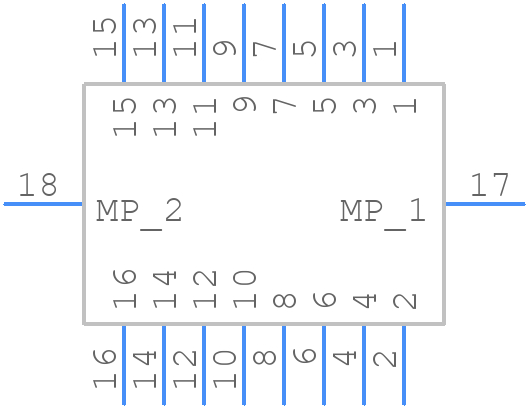

Use the download button to access the 2317531-1 3D model. You can still request or build the schematic symbol and PCB footprint by using the respective build or request forms on this page.
To find more CAD model downloads similar to this part, try a partial part number search, like 23175,
or try a keyword search, such as Combination Line Connectors
About TE Connectivity
TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
