2317537-1 - TE Connectivity

Description: PCB Mount Header, Vertical, Wire-to-Board, 22 Position, 1.8 mm [.07 in] Centerline, Fully Shrouded, Tin, Surface Mount, Signal, Black

Download 2317537-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

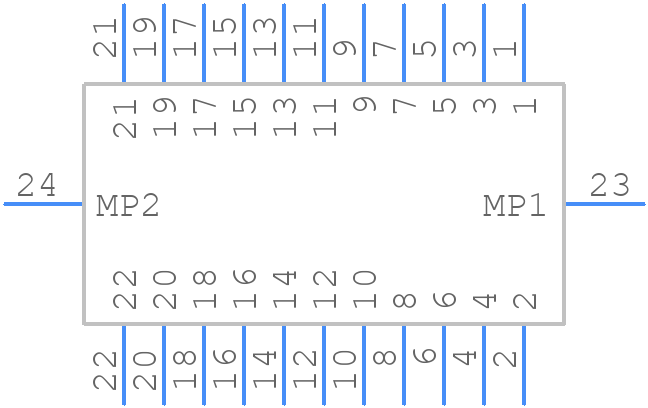

Symbol
2317537-1 - TE Connectivity - PCB symbol
click to zoom

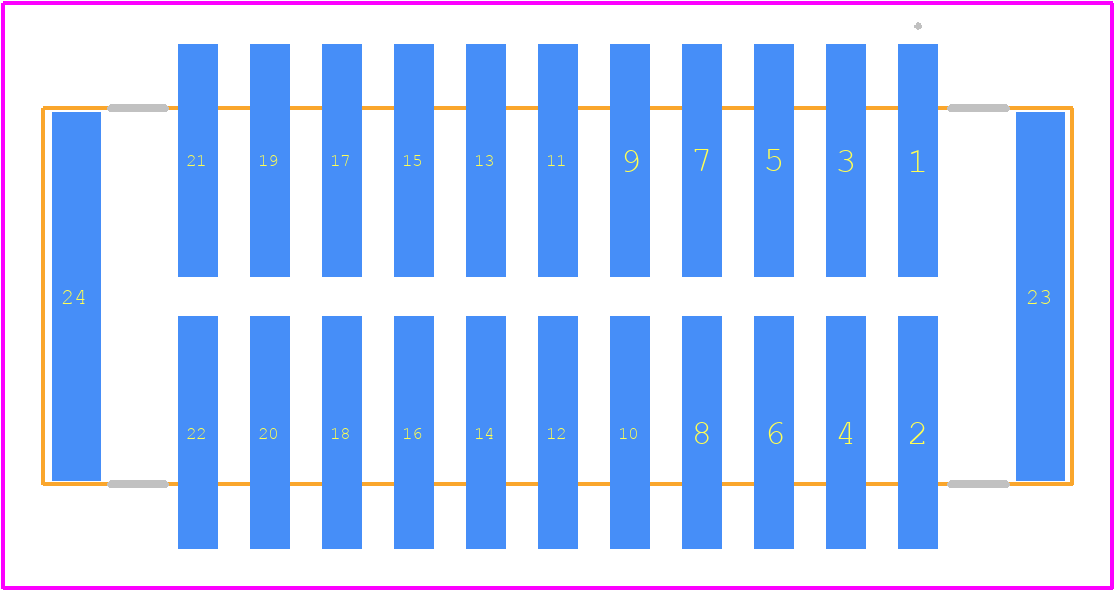

PCB Footprints
2317537-1 - TE Connectivity PCB footprint - Other - Other - 2317537-1-2
click to zoom
3D Models
2317537-1 - TE Connectivity - 3D model - Other - 2317537-1-2
click to zoom

2317537-1 Details

  • Manufacturer Part Number:

    2317537-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.37 inch

  • Body Length:

    0.65 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    1.8 mm

  • Termination Type:

    SURFACE MOUNT

2317537-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2317537-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 2317537-1 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, the connector's materials and construction can withstand moderate exposure to environmental factors, but it's not designed for extreme or prolonged exposure to harsh conditions.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with the 2317537-1 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire insulation is not damaged during installation. Consult with TE Connectivity or a qualified engineer for guidance on using non-recommended wire sizes.
  • Yes, it's essential to follow proper PCB design and layout guidelines when using the 2317537-1 connector. Ensure the PCB is designed to accommodate the connector's footprint, and that the PCB material and thickness can support the connector's weight and any applied forces. Additionally, consider the connector's keep-out zones and ensure proper clearance around the connector to prevent interference or damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2317537-1 Overview

Use the download button to access the 2317537-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23175, or try a keyword search, such as Combination Line Connectors
