232-237 - Wago

Description: THT female header; angled; Pin spacing 5 mm; 7-pole; 0.6 x 1.0 mm solder pin

Download 232-237 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
232-237 - Wago - PCB symbol
click to zoom
PCB Footprints

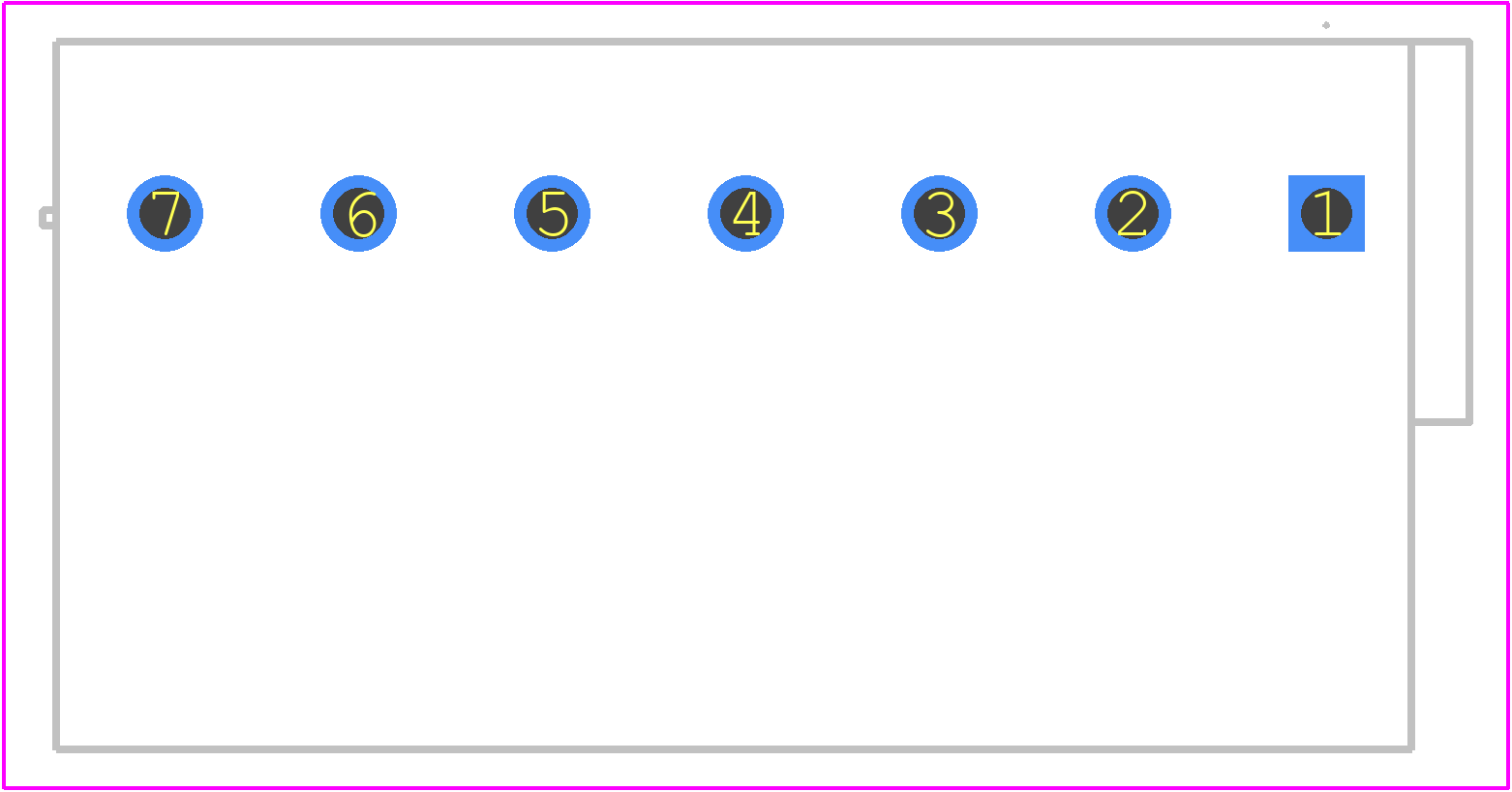

232-237 - Wago PCB footprint - Other - Other - 232-237-2
click to zoom
3D Models
232-237 - Wago - 3D model - Other - 232-237-2
click to zoom

232-237 Details

  • Manufacturer Part Number:

    232-237

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.58

  • Additional Feature:

    PA 66, UL 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    7

  • Rated Current:

    12 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK
