2327671-3 - TE Connectivity

Description: Sliver for SFF-TA-1002, PCB Edge Card, Right Angle, EDSFF / Gen-Z Standard, 84 Position, Sliver for SFF-TA-1002, Internal I/O Connectors

Download 2327671-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2327671-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

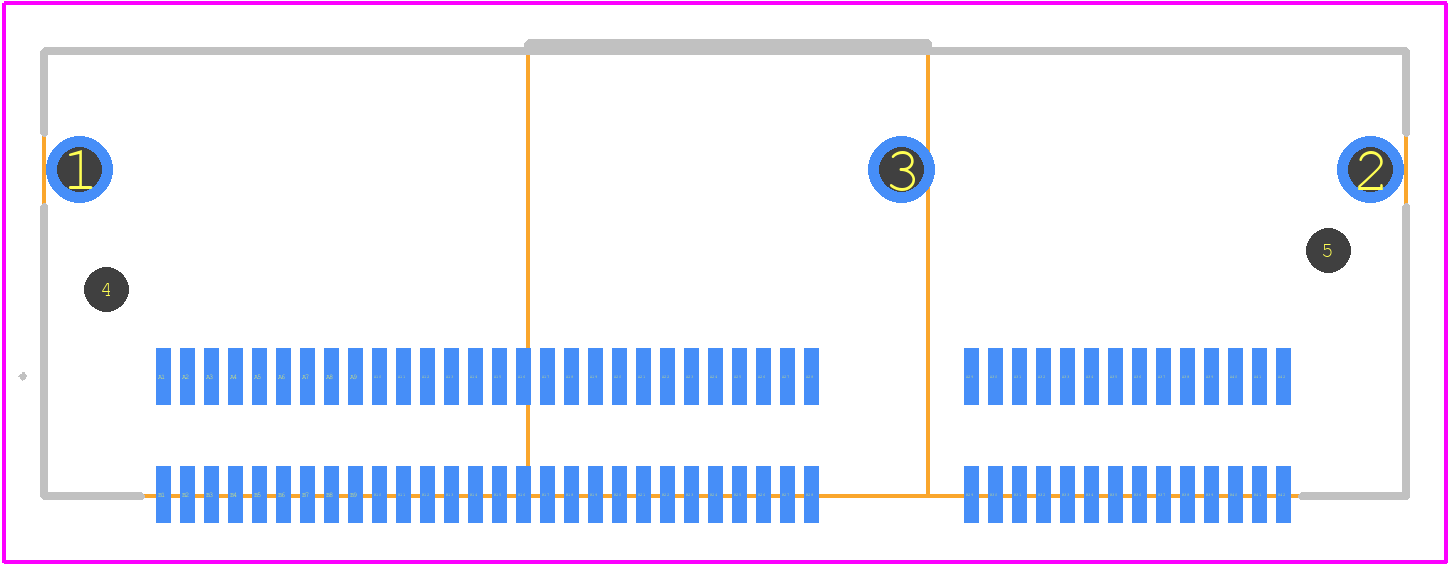

2327671-3 - TE Connectivity PCB footprint - Other - Other - 2327671-3-2
click to zoom
3D Models
2327671-3 - TE Connectivity - 3D model - Other - 2327671-3-2
click to zoom

2327671-3 Details

  • Manufacturer Part Number:

    2327671-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    11 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    4

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.1A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    1.1 A

  • Terminal Pitch:

    0.6 mm

  • Termination Type:

    SURFACE MOUNT

2327671-3 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm (5.3 in-lbs) for the screw terminals, but it's always best to consult the TE Connectivity application notes for specific guidance.
  • Yes, the 2327671-3 connector is designed to withstand vibrations and is suitable for use in harsh environments. However, it's essential to follow proper mounting and installation procedures to ensure reliability.
  • The operating temperature range for the 2327671-3 connector is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • Yes, the 2327671-3 connector is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.
  • The recommended wire size for the 2327671-3 connector is 24-20 AWG (0.25-0.5 mm²). However, it's essential to consult the TE Connectivity application notes for specific guidance on wire size and termination procedures.
