2329739-1 - TE Connectivity

Description: Body Features: Shield Material Phosphor Bronze | Primary Product Color Black | Configuration Features: Number of Signal Positions 64 | Number of Positions 64 | Number of Rows 4 | Number of Pairs 32 | Backplane Architecture Traditional Backplane | Number of Ground Positions 40 | Number of Power Positions 64 | Number of Columns 8 | PCB Mount Orientation Right Angle | Pairs per Column 4 | Contact Features: Contact Shape & Form Dual Beam | PCB Contact Termination Area Plating Material Tin | Contact Current Rati

Download 2329739-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2329739-1 - TE Connectivity - PCB symbol
click to zoom

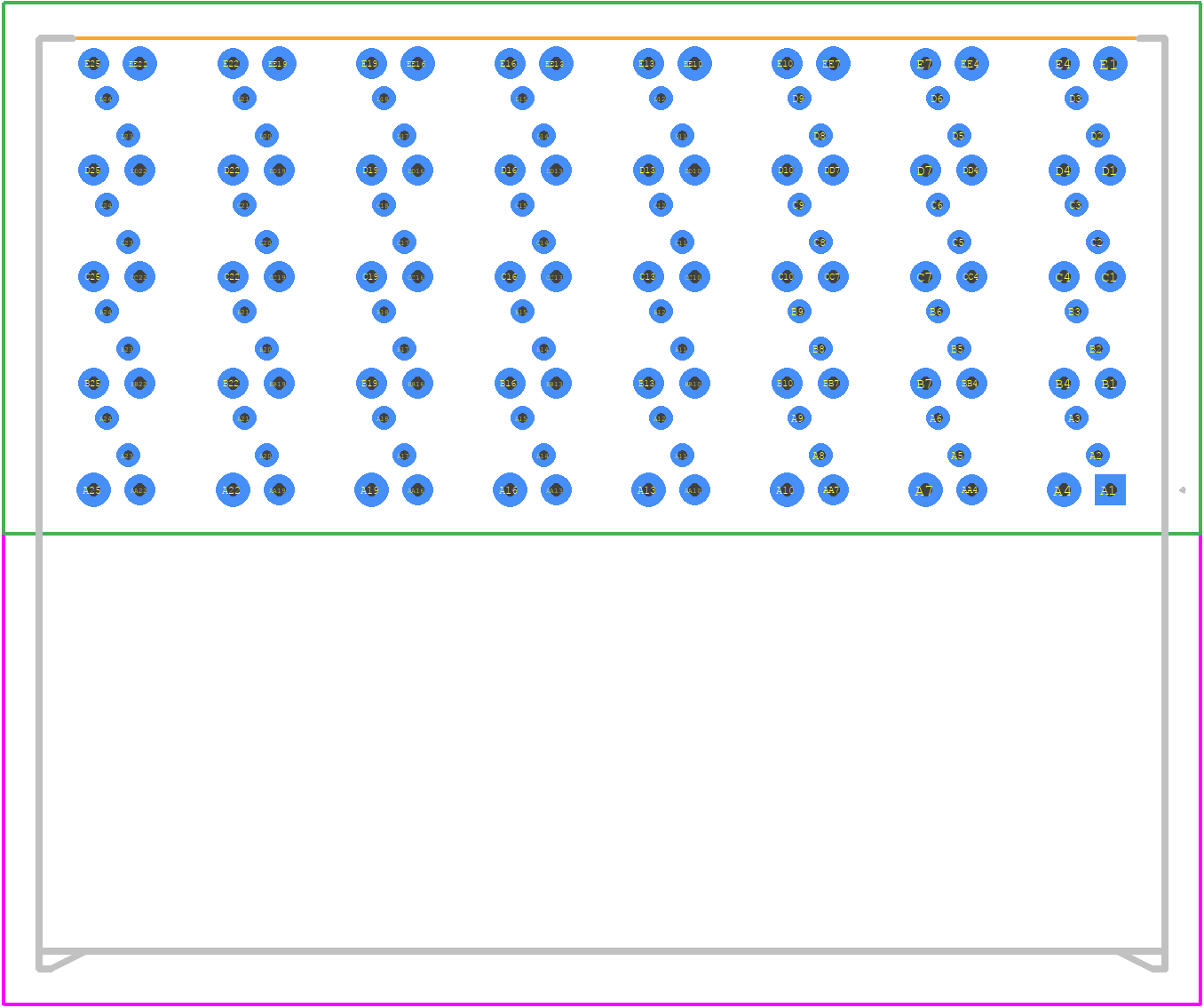

PCB Footprints
2329739-1 - TE Connectivity PCB footprint - Other - Other - 2329739-1-3
click to zoom
3D Models
2329739-1 - TE Connectivity - 3D model - Other - 2329739-1-3
click to zoom

2329739-1 Details

  • Manufacturer Part Number:

    2329739-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.9

  • Board Mounting Option:

    COMPLIANT BOARDLOCK

  • Body/Shell Style:

    RECEPTACLE

  • Characteristic Impedance:

    92 Ω

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Durability:

    200 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .4A

  • Mating Contact Row Spacing:

    0.098 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    0.4 A

  • Reference Standard:

    UL

  • Shell Material:

    PHOSPHOR BRONZE

  • Terminal Pitch:

    3.9 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    104

  • UL Flammability Code:

    94V-0

2329739-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2329739-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines.
  • To ensure reliable connections in high-temperature environments, it's essential to follow proper termination techniques, use high-temperature-rated wire and insulation, and consider using thermal interface materials or heat sinks to dissipate heat.
  • The 2329739-1 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper sealing and protection. TE Connectivity offers various sealing options and accessories to ensure environmental protection.
